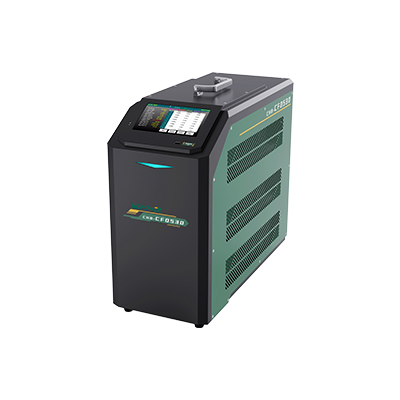

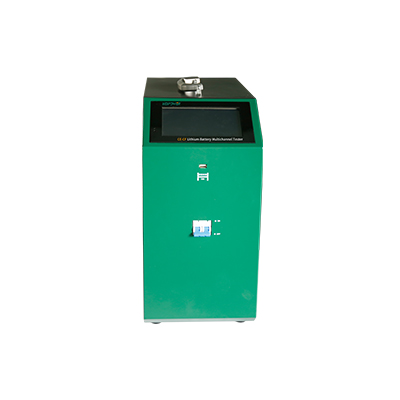

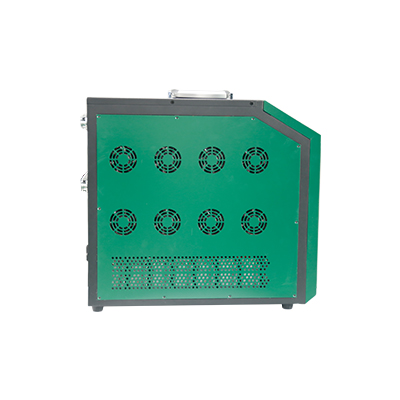

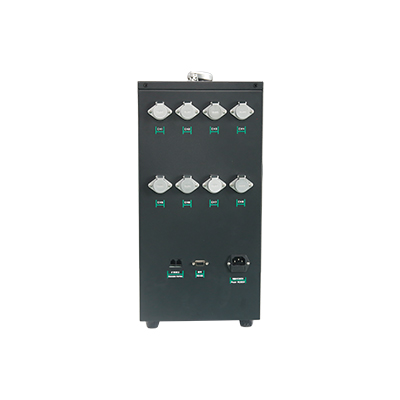

Overview
CE-CF series is used to perform the repair and maintenance of voltage difference for module cell, which can completely solve the issue of battery capacity degradation via manual & automatic two-way maintenance. This series is especially designed for guaranteeing the battery safety performance , extending the battery life, and reducing the cost of battery repair and replacement.
Application Market
- AGV
- Electric forklift truck

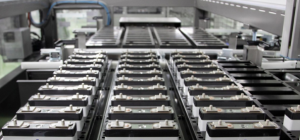

- Battery warehouse
Parameters
| Series | CE-CF0530-4C | CE-CF0530-8C |
| The No. Of Channels | 4 | 8 |
| Voltage range | DC 1.000～5.000V | |
| Voltage Accuracy | 0.05%FS | |
| Current range | 0-30A*4 | 0-30A*8 |
| Current Testing Accuracy | 1%FS | |
| Voltage Acquisition Resolution | 0.001V | |
| Current Acquisition Resolution | 0.01A | |
| Working Voltage | AC220V 45～60Hz | |
| Automatic | Discharging,Charging,Equalizing | |

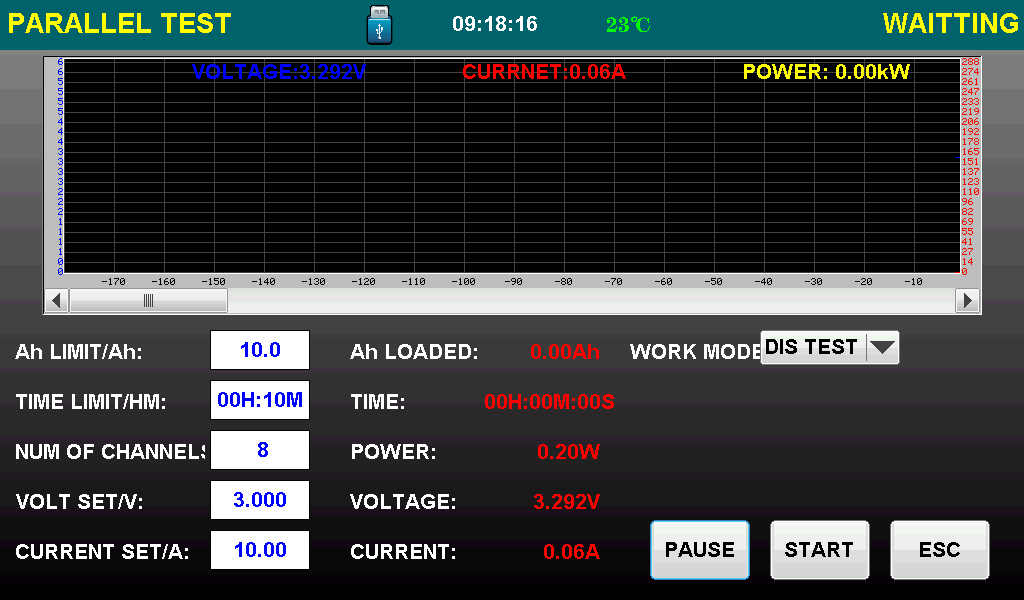

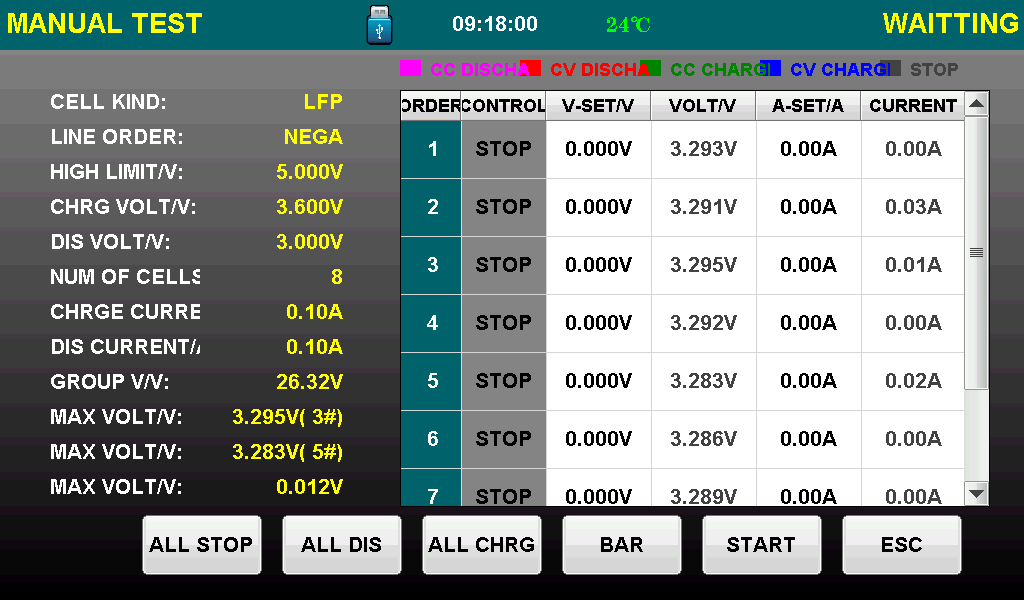

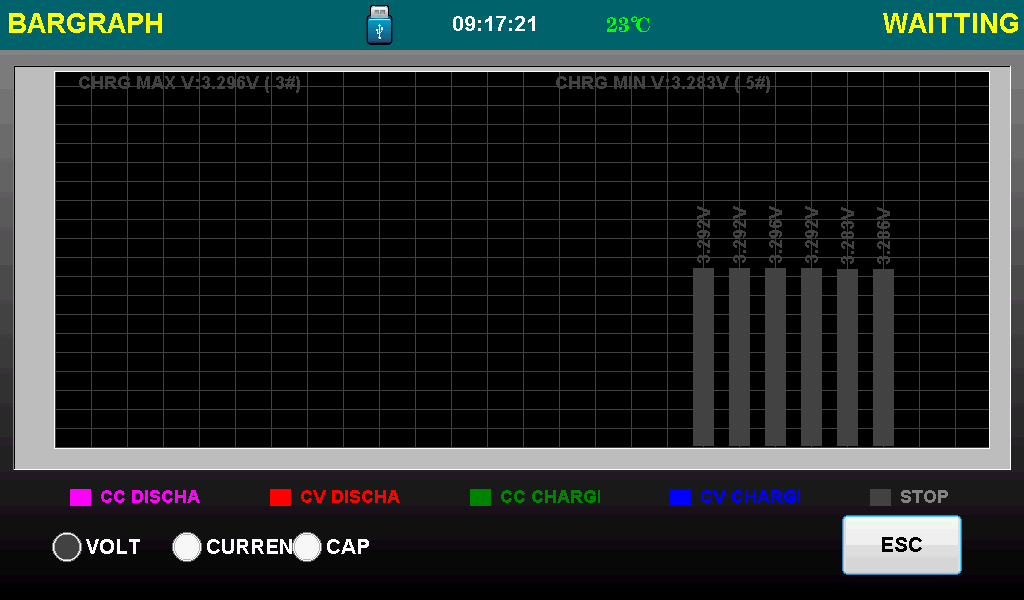

| Display | 7-inch touch screen, displays real-time single-unit status information, fault display, and operating status | |
| Protection | Under-voltage, over-voltage, over-current, over-temperature, short circuit, disconnection and other protections | |
Features
Accurate sampling in real time
The voltage and current are sampled separately for scientific design.
Wide voltage & customized current
Wide voltage range design to compatible for different lithium battery bank testing, and the charging&discharging current can be customized.
Support cyclic charging&discharging mode
Effectively improve the capacity and usage times of the battery.
Safety operation
Supports cell voltage and temperature data acquisition and setting, ensuring a safer charging&discharging process.

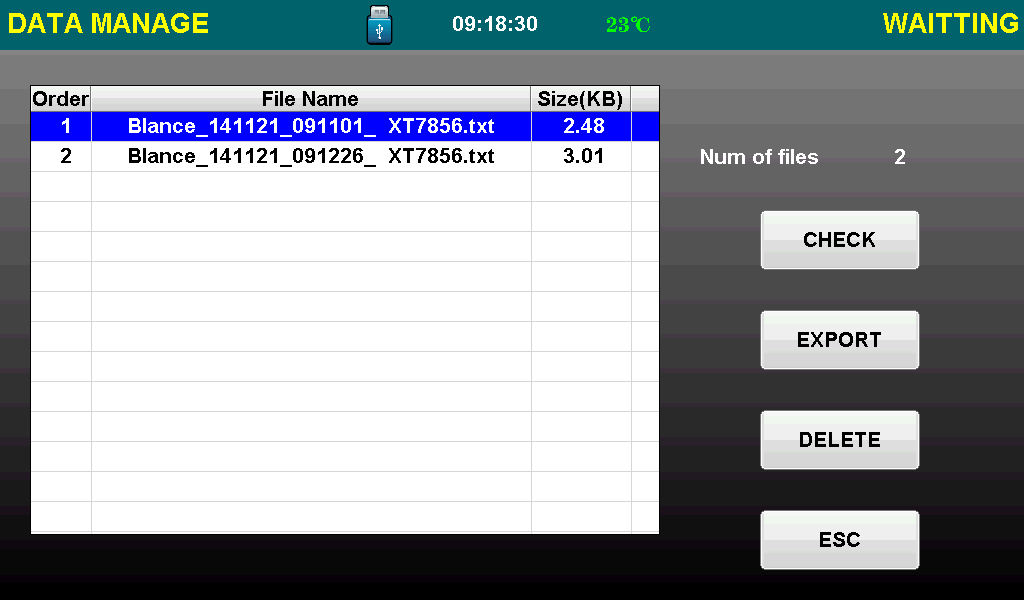

Intelligent tracking
Data recording for maintenance data tracking all the time.
Humanized design
intelligent design and humanized user interface for easy operation.
Multi conditions to issue sound and light alarms
Reverse polarity, over-temperature, over-current, under-voltage, over-voltage, short-circuit emergency stop, etc.
Battery cell voltage and temperature acquisition function
Equip with cell monitoring module or customized protocol converter board
