Overview

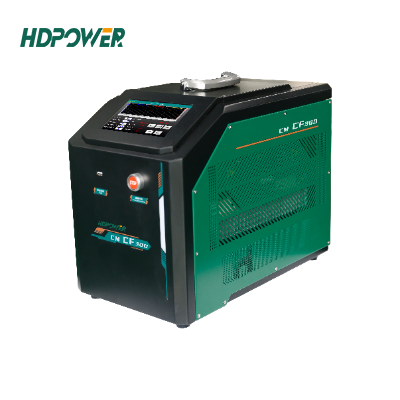

CM-CF300/500 series adopts intelligent charging & discharging integrated control technology, and the state-of-the-art FreeRTOS + STEMwin design to efficiently regulate the voltage or SOC of the module to reach the same standard range,thus avoiding the inconsistency in voltage and capacity due to replacing the battery module.
Charging and Discharging can be performed at constant voltage, constant current and constant power with a pre-selected testing profile.
CM-CF series are lightweight solution for various testing fields from all around the world, developed to meet customer’s wide ranging test.
Application Market
- Capacity Testing

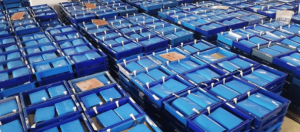

- Charging & Discharging for: Battery to be repaired、New replaced batteries、Battery ready for shipment
- Regular maintenance
Parameters
| Model | CM-CF300 |
| Charging & discharging voltage | DC2-300V |
| Voltage accuracy | 0.5%FS |
| Discharge current | 0-150A(Max) 7.5kW |
| Charge current | 0-150A(Max) 4.5kW |
| Current accuracy | 1%FS |
| Voltage & Current Resolution | PACK：0.01V ,CELL：0.001V |
| 0.01A | |
| Input voltage | 110V/220V AC |
| Working mode | Charging: Constant voltage, constant current Discharging: Constant current, constant power |
| Data communication | RS485, CAN, USB |
| Display | 7inch LCD touch screen，Resolution 1024×600 |
| Protection Performance | Host protection、Reverse connection、protection Abnormal protection、Over-temperature protection、Emergency stop |
| Size | 495*270*405mm |
| Weight | 25Kg |
Features
Wide voltage & customized current
Wide voltage range design to compatible for different lithium battery bank testing, and the charging&discharging current can be customized.
Support cyclic charging&discharging mode
Effectively improve the capacity and usage times of the battery.
Safety operation
Supports cell voltage and temperature data acquisition and setting, ensuring a safer charging&discharging process.
Intelligent tracking
Data recording for maintenance data tracking all the time.
Humanized design
intelligent design and humanized user interface for easy operation.
Multi conditions to issue sound and light alarms
Reverse polarity, over-temperature, over-current, under-voltage, over-voltage, short-circuit emergency stop, etc.
Battery cell voltage and temperature acquisition function
Equip with cell monitoring module or customized protocol converter board
