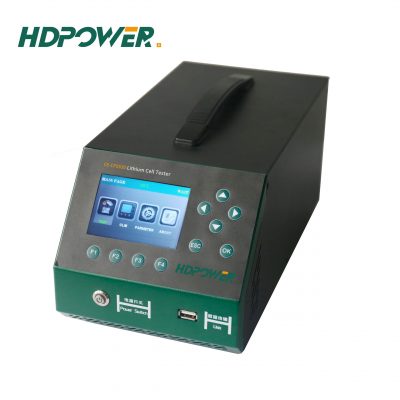

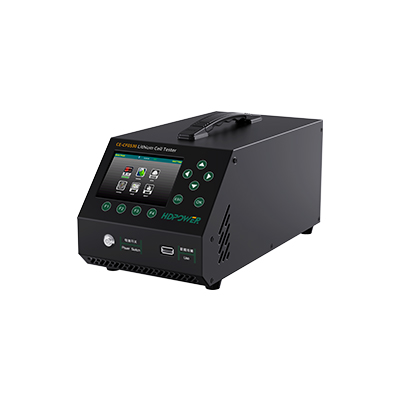

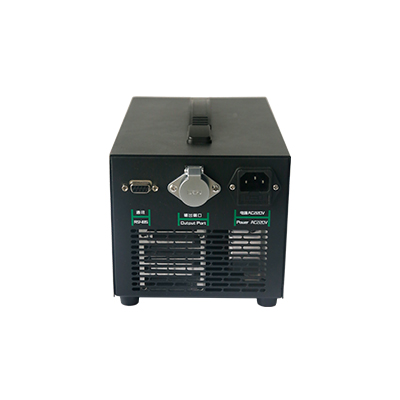

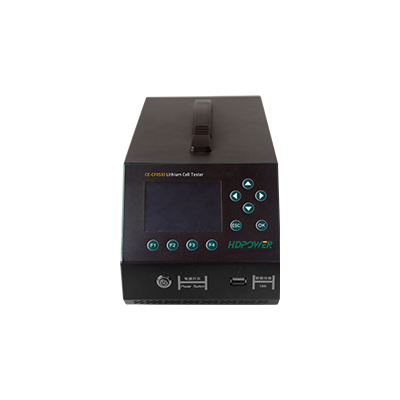

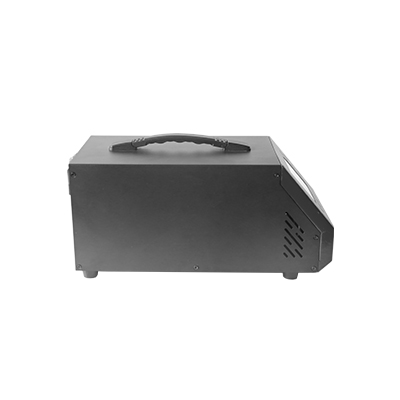

CE-CF0530 Lithium Battery Cell Charging&Discharging Tester


Model Name CE-CF0530
Power supply AC100~264V/ 50Hz
Voltage Test Range DC1V-5V
Charging current range 1~30A±0.5%FS+0.1A@30A continuously adjustable
Charging mode Constant current, constant voltage
Discharge current range 0~30A continuously adjustable
Discharging mode Constant current, constant power
Voltage accuracy/Resolution +0.2%FS+5Mv@5V; resolution: 0.001V
communication interface RS485/USB
Working temperature -10~65℃
Storage temperature -40~75℃
protective measure
Input under-voltage, over-voltage protection, battery reverse polarity protection, output over-current protection, equipment over-temperature protection, etc.
Heat dissipation Air cooling



Overview

CE-CF0530 adopts high-frequency power supply design to realize rapid charging and discharging maintenance of lithium battery cell. To be with battery cell capacity screening, SOC adjustment function, it is a high cost-effective cell maintenance equipment.

Features

Various kind of maintenance modes:

Industry leading charging& discharging modes as constant current/voltage for charging, constant current/power for discharging.

Wide application field:

covers the maintenance of mainstream lithium batteries in the market.Support voltage &capacity termination,and power calculation.

High performance testing

Voltage and current sampling line isolation design for more accurate testing, the charging&discharging current is adjustable to realize efficient maintenance.

Safety operation:

Provide various testing termination thresholds to avoid over-overcharging & discharging, ensuring the safety of battery and testing equipment.

Compact size:

Small size and light weight, easy to carry.
