| Model Name | CQ-KP |
| Power supply | 220V/AC±15% 50Hz |
| Power consumption | ＜40W |
| Pressure range | 0~500kpa |
| Sensor resolution | 1Pa |
| Display | 7inch touch screen 1024*480 |
| Test method | Differential pressure method |
| Communication | USB,RS485 interface |
| Historical data display | Support |
| Data transmission | USB,RS485 interface |
| Working temperature | 5~40℃ |
| Environment | Storage temperature: -20~70℃，80%HR(No condensation) |
| Volume(mm) | 367*230*230 |
| Weight(Kg) | 6.8 |
Overview

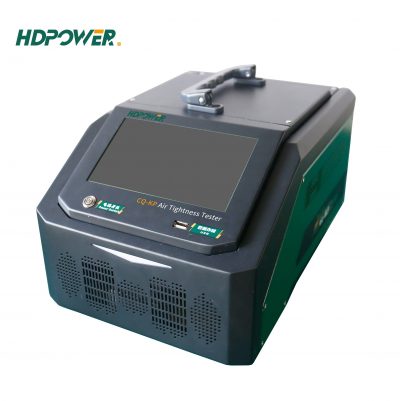

CQ-KP is a special test equipment developed for new energy field, which is suitable for the sealing test of battery pack, liquid cooling tube, high voltage distribution box, motor control unit and other components. The equipment adopts automatic output air pressure control technology, simple operation, high testing accuracy, lightweight and portable.
Features
● High-definition touch screen display:
equipped with high-definition touch screen, supporting the double prompt function of sound and light alarm and screen display.
● Intelligent inflation control:
adopts segmented inflation design to realize automatic adjustment of test air pressure.
● Safety Protection Mechanism:
Equipped with high-pressure automatic protection function, triggering sound and light alarms when abnormal; automatic pressure preservation and leakage detection when the test fails.
● Portable design:
simple and intuitive operation, compact and lightweight, easy to carry and use.
