Parameters
HDGC3985 Battery Charging& Discharging Tester |
|||||
Suit Battery | DC 48V System | DC 110V System | DC 220V System | DC 380V System | DC 480V System |
Discharge voltage range | 32-57V | 88-132V | 176-264V | 304-456V | 384-576V |
Discharge current | 0-50A/0-150A/0-300A | 0-30A/0-50A/0-60A | 0-30A/0-100A | 0-50A | 0-40A/0-80A |
Charge voltage range | 40-57V | 96-160V | 190-270V/50-300V | 300-500V | 400-600V |
Charge current | 0-50A/0-120A/0-180A | 0-20A/0-40A/0-60A | 0-60A/0-100A | 0-40A/0-50A | 0-30A/0-50A |
Instrument Functionality |
|||||
Display | 7-inch LCD touch screen with 1024 x 800 resolution | ||||
Voltage measurement accuracy | ±0.5%FS+0.1V | ||||
Current measurement accuracy | ±1%FS+0.1A | ||||
Discharge current display accuracy | 0.1A | ||||
Data storage | Internal 32G TF storage, external 16G micro-USB card reader | ||||
Data communication | RS485、USB | ||||
Working mode | Activation, constant-current, constant-voltage, float-charge | ||||
Protection performance (LCD display reminder + buzzer alarm) |
|||||
Host protection function | Over-temperature, over-current, current runaway trigger shutdown protection | ||||
Reverse connection protection | Reverse polarity audible and visual alarms | ||||
Abnormal protection | Power line drop, mains cable drop | ||||
Over temperature protection | Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging | ||||
emergency stop | External open circuit breaker for emergency shutdown protection | ||||
Working environment |
|||||
Cooling mode | Forced air cooling | ||||
Temperature | Operating temperature : -5~50℃, Storage temperature : -40~70℃. | ||||
Humidity | Relative humidity : 0~90%(40±2℃) | ||||
Altitude | Available below 4000m | ||||
Power supply |
|||||
Voltage | Supply voltage: AC 220V (-20%~+30%), frequency: 45~65Hz.
Charging input: AC220V (-20%~+30%) |
||||
Withstand voltage | Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min | ||||
Safety | Satisfies EN 610950 |
Overview

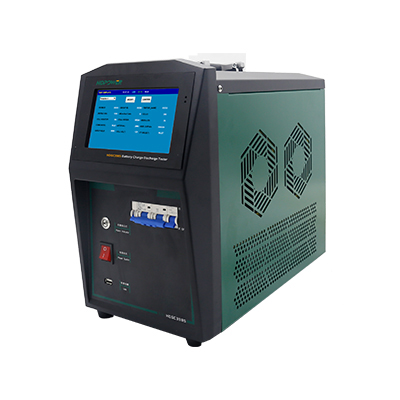

HDGC3985 multi-purpose intelligent battery charging and discharging tester use to perform battery constant current discharge, intelligent charging and activation, which can reduce enterprise cost and maintenance personnel labor intensity. It is ideal solution for regular battery pack testing and backward battery re-life and providing scientific testing methods for batter and UPS power maintenance.
There are wide range of application market areas as telecommunication, base station, electric power etc. The working modes can defined according to real demands as deep discharging and then charging,which makes battery pack keeping the satisfaction state at any time to extend service life. It is definitely a good assistant for battery maintenance.

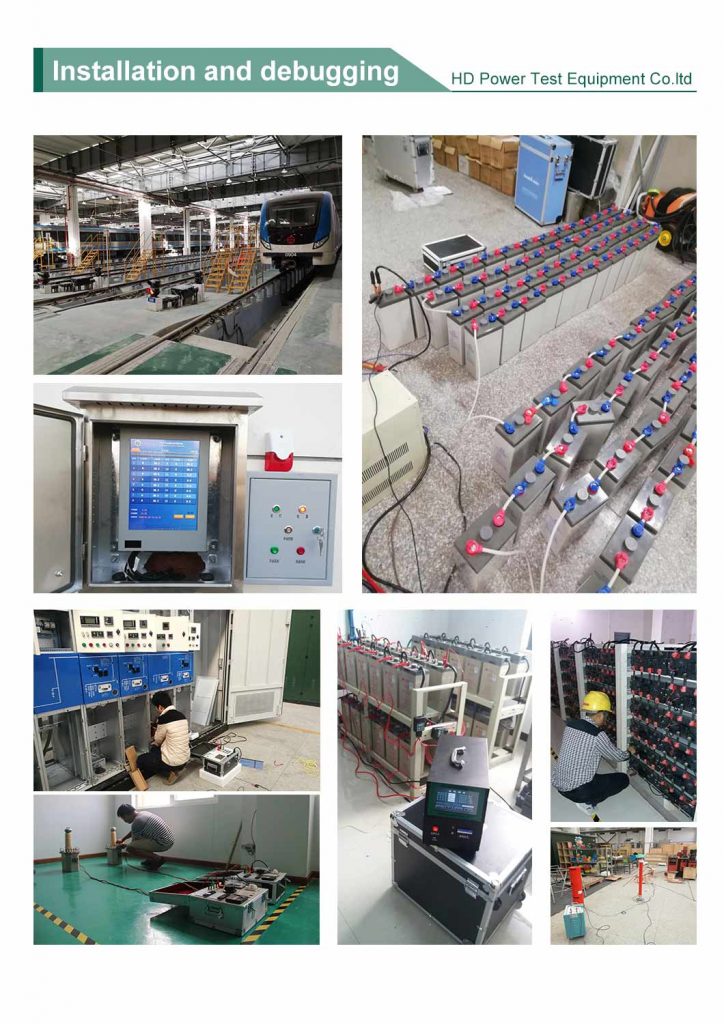

Applications
Features
● Multi working modes: Constant-current discharge, constant-power discharge, constant-current charging, constant-voltage current-limiting charging, trickle-float charging etc.
● HD Display: 7-inch touch screen with resolution of 1024*800, the military-grade touch panel to reach strong anti-interference ability.
● Multi safety protection modes: over-current, short-circuit, high temperature, reverse polarity etc.
● Multiple alarm functions: The tester issues alarm and stops discharging in real time when it occurs abnormal problems as high voltage, under-voltage, current out of range and fan failure etc., which avoid the damage of tester and related equipment.
● Intelligent operation design: automatic recording and intelligent analysis of the entire test.
● Support parallel operation: Parallel operation to meet the demand of more than 300A discharging current.
● Rapid capacity analysis: the remaining capacity of the battery can be predicted by 3-5 minutes of rapid discharge.
● High performance component: adopt polymer PTC to realize low power consumption and strong anti-surge ability. The CPU of main control board adopt the high-performance ARM from imported STM Microelectronics to realize the stable performance, high frequency and powerful functions. The main & vice CPU work together to ensure the testing safety and reliability .
● High-frequency wave width modulation (PWM) technology in charging: filtering, rectification, inverter, power efficiency conversion integration, built-in electromagnetic interference (EMI) surge protection circuit and microprocessor control technology.
● Charging&discharging parameters preset : multi templates parameter inside for different types of batteries, and automatically saved after power down and directly restart testing after power up.
● Equipped with professional analysis software: simultaneously display data table as voltage,current curves, single cell histogram etc., and automatically generate report in EXCEL/WORD to print.
● Powerful storage space: with internal 16G for 1000 groups discharging data and external 16G USB data reader
● Discharging termination set via multi conditions: discharging capacity to limit, discharging time to limit, cell voltage threshold, module voltage threshold. It will automatically stop discharging when any one of testing conditions are reached.
● Charging termination set via multi conditions: charging capacity to limit, charging time to limit, cell voltage high limit, module voltage high limit. It will automatically stop charging when any one of testing conditions are reached.
● With activation and repair function: active substances for negative electrode vulcanization to reduce the capacity decline and improve battery life.
● Self-calibration function for high measurement accuracy
● Curve Viewing Function: data files view in graphs and waveform format.
