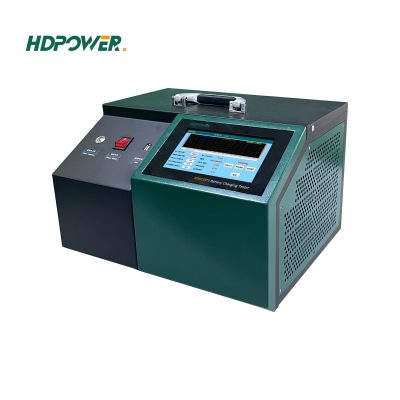

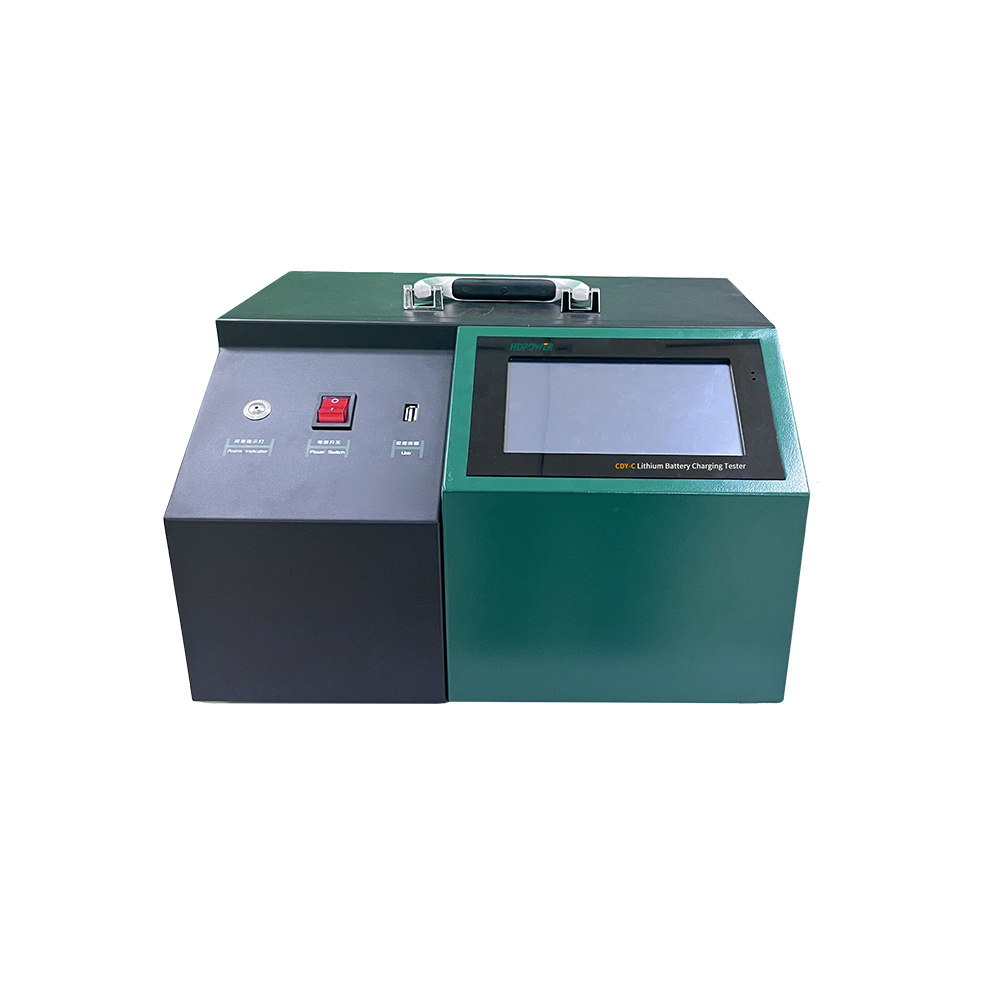

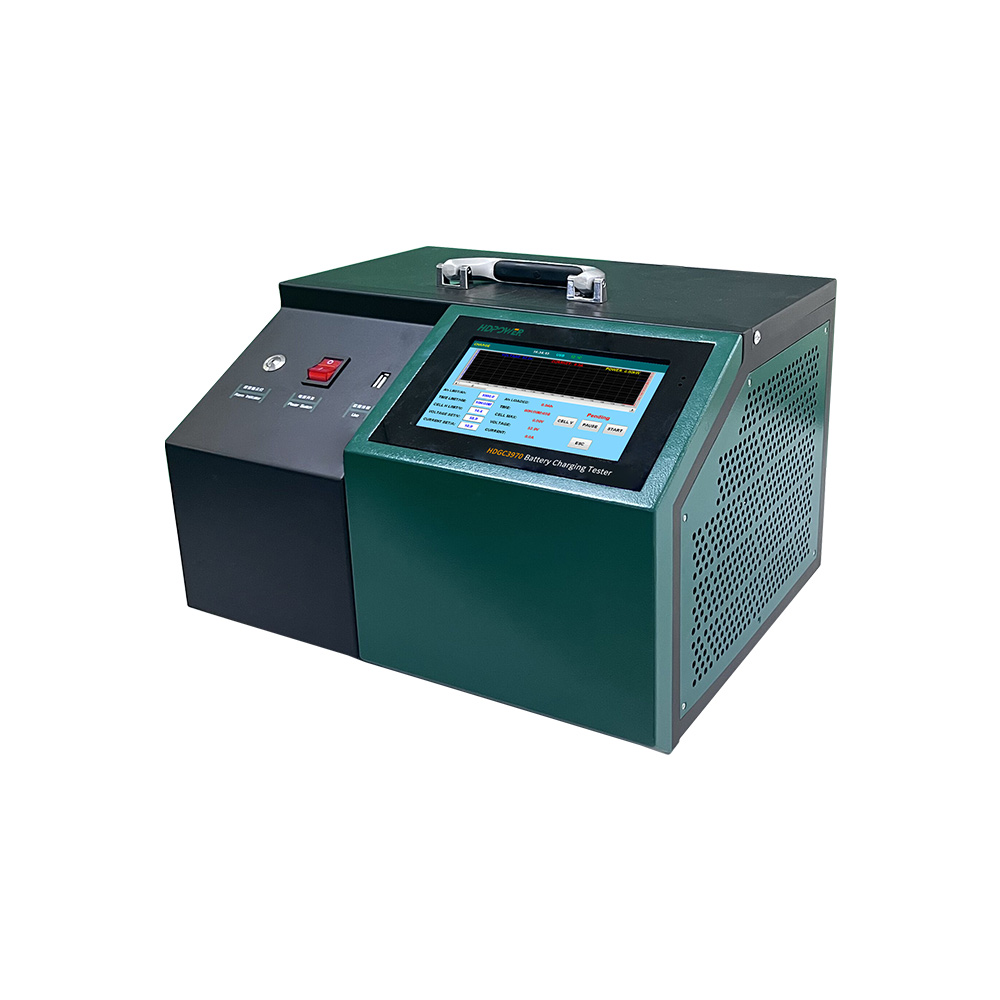

HDCK Battery Charger


General information

HDCK Battery Charge Tester is mainly used for the charge test of the lead-acid battery of the backup power supply in the telecommunications, mobile, substation, railway transportation and pertrochemical industry power DC industries. It keeps the constant communication maintain between the battery charge ensuring a perfect charge.
Battery charge tester is designed using intelligent three-stage charging mode to achieve the function of automatic conservation between charging and floating charge. It also can on-line detect the voltage of the whole battery, real-time display and record the voltage of whole battery. The tester can automatically accomplish charging after setting the parameter of voltage, current, time and capacity.

Features

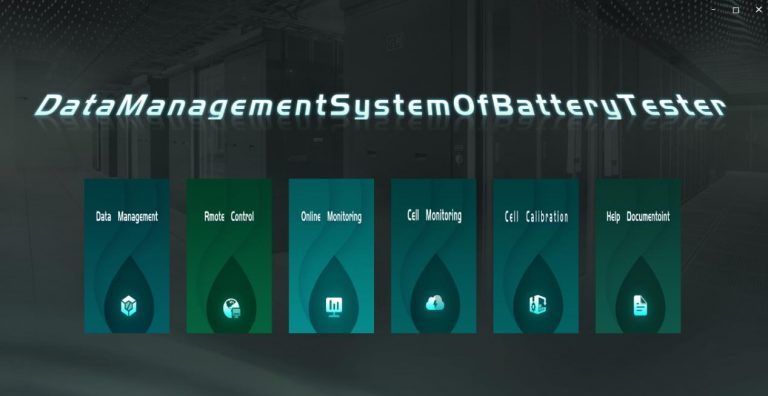

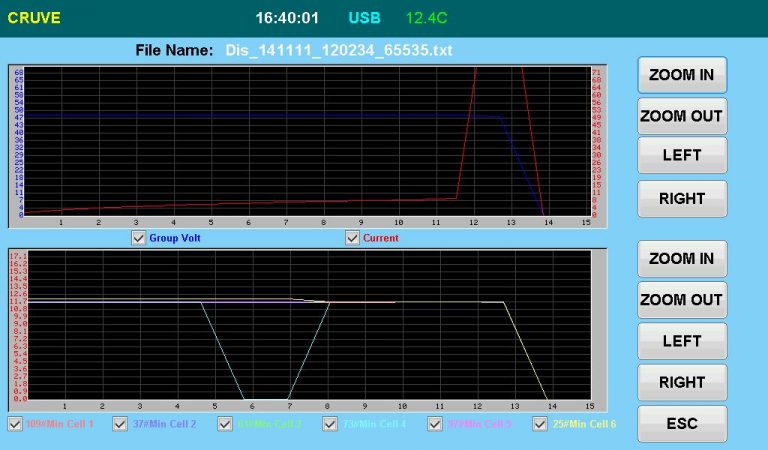

● PC software can record and analyze total voltage, discharge current ,cell voltage and other data , generate the data report . it can virtually reflect battery serious performance curve, diagram and report for printing and searching .
● Connected with USB interface,the data of the discharge process can be record to U disk and transformed to PC by U disk . PC data manage software can analyze the discharge process and generate the corresponding data for more convenient storage .

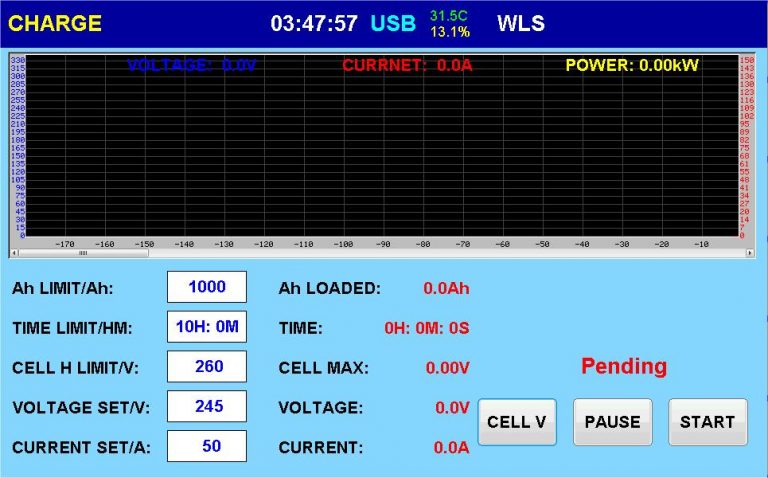

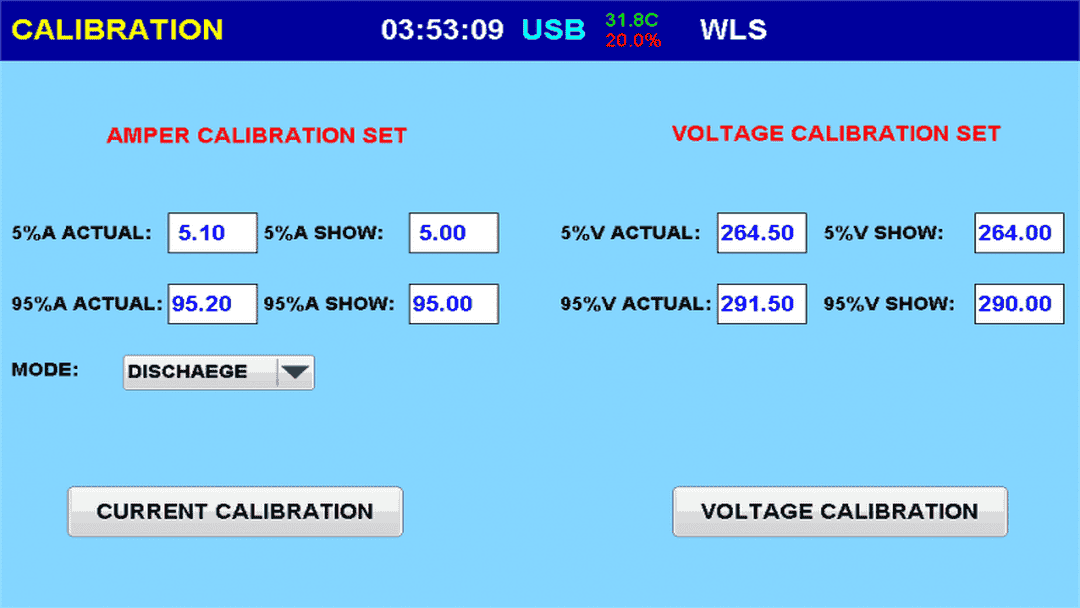

● Intelligent SCM ARM control, 7inch 1024*600 LCD screen , capacitive touch operation, built in English menu, simple and clear operation menu.
● Automatic self-protection stop function, over-heat protection ,over voltage protection , over current protection and reverse connection protection ,alarm prompt is displayed on the screen once it appears any issue, air circuit breaker automatically cut off .
● It can set termination condition including cell battery voltage high,whole group voltage high, charge charge time , charge capacity .When any condition can be met, the tester can stop automatically testing with buzz sound and record the stop reason at the same time.
● It can perform on-line compensated charge/discharge, and can also carry on discharge test for on-line working storage battery by connection external current clamp sensor,which is convenient for measurement work. The function is suitable for only single set of backup battery .
● RS485 remote control the charge.

Technical Specifications

Suitable Battery DC48V/110V/220V/240V Battery Pack
Model No HDCK-3002 HDCK-3004 HDCK-3006
Charge voltage DC 10-300V DC 10-300V DC 10-300V
Charge current 0-20A 0-40A 0-60A
Working mode Standalone mode, parallel master mode, parallel slave mode,
 and remote control mode
Protection performance Over-voltage protection, under-voltage stop, over-current protection, reverse connection protection, 65℃ over-temperature protection,LCD prompt and buzzer alarm
Cell voltage collection (optional) Multi-band RF wireless module for more than 100m communication distance, compatible with 2V/4V/6V/12V cell voltage monitoring, 1-25 groups of RF wireless monitoring modules for monitoring up to 300 batteries, and single wireless monitoring module for monitoring 12 cells
Control precision Charge current ≤ ±1%; group voltage ≤ ±0.1%; cell voltage ≤ ±0.1%

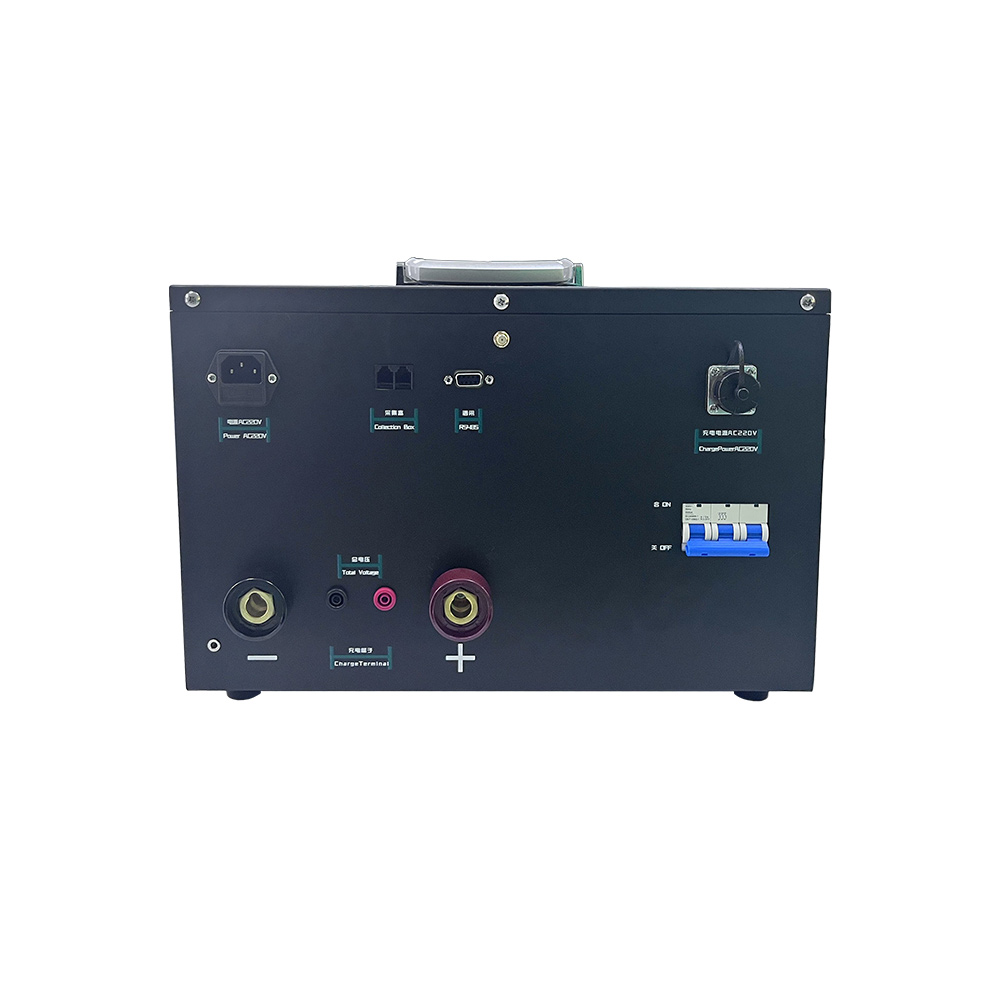

PC communication RS485 interface, USB interface
Work Environment
Cooling Forced air cooling
Temperature Working rage: -5-50℃  Storage temperature: -40-70℃
Humidity Relative humidity 0-90% (40±2℃)
Altitude Altitude 4,000m
Noise ﹤75dB
Working Power Supply
Voltage Power supply: single-phase AC220V (-20%-+30%), frequency: 45-65Hz; charging power supply: refer to nameplate parameters or case label
Dielectric withstand test Input-shell: 2200Vdc 1min
Input-output: 2200Vdc 1min
Output-shell: 700Vdc 1min
