| Model | CDY-C24V50A | CDY-24V100A | CDY-24V150A | CDY-24V200A |
| Input power | ≤1KW | ≤1.4KW | ≤2.7KW | ≤4.0KW |
| Charging current range | 0~50A | 0~100A | 0~150A | 0~200A |
| Maximum output power | ≤1.4KW | ≤2.8KW | ≤4.2KW | ≤5.6KW |
| Power supply | AC220V/50HZ | |||
| Rated output voltage | 24V | |||
| Charging voltage range | 18~28V | |||
| Conversion efficiency | ≥92% | |||
| Communication method | USB、RS485、CAN | |||
| Cooling method | Forced air cooling | |||
| Operating humidity | Working temperature: -20C-50C, working humidity: 0%-93% | |||
| User interface | 7-inch LCD touch screen with 1024*800 resolution | |||
| Noises | <70dB | |||
| Protective measure | under-voltage, reverse connection, output over-current, output over-voltage, output short-circuit, over-temperature and other protection | |||
| Charging cable length | Approx. 3m | |||

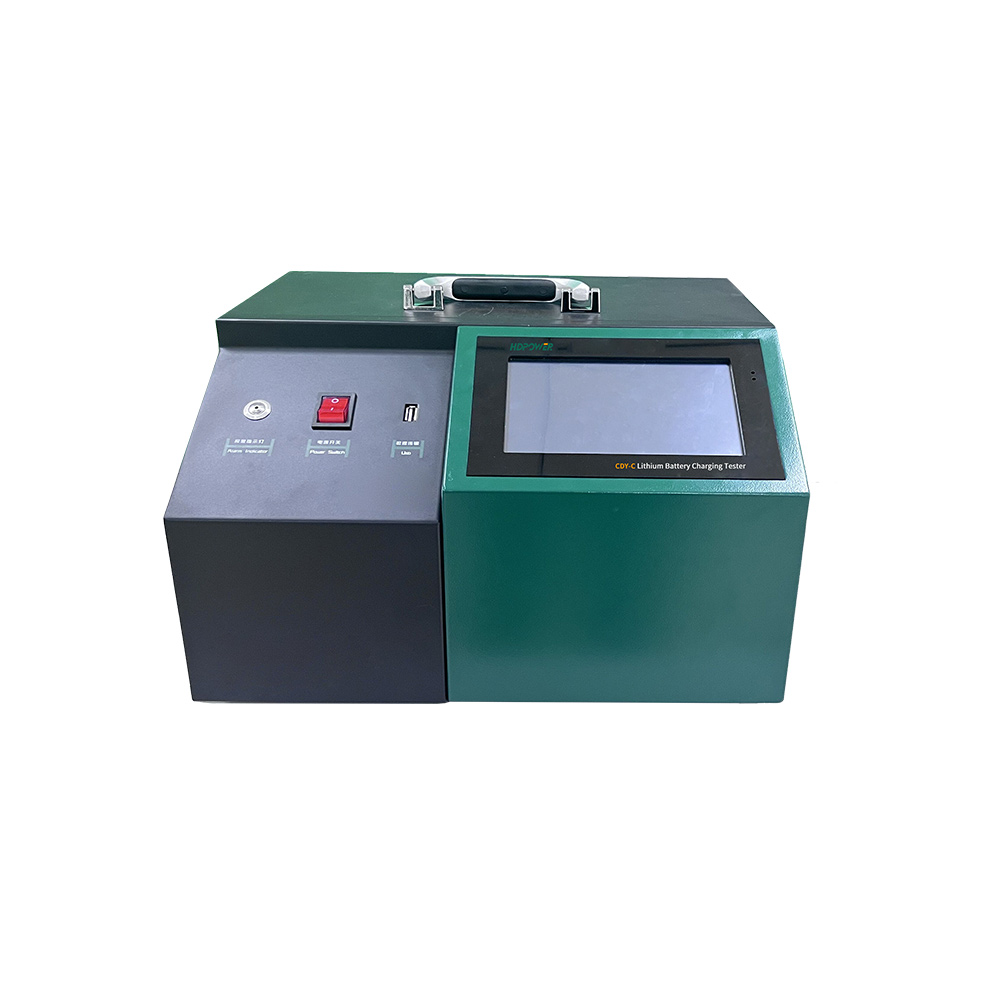

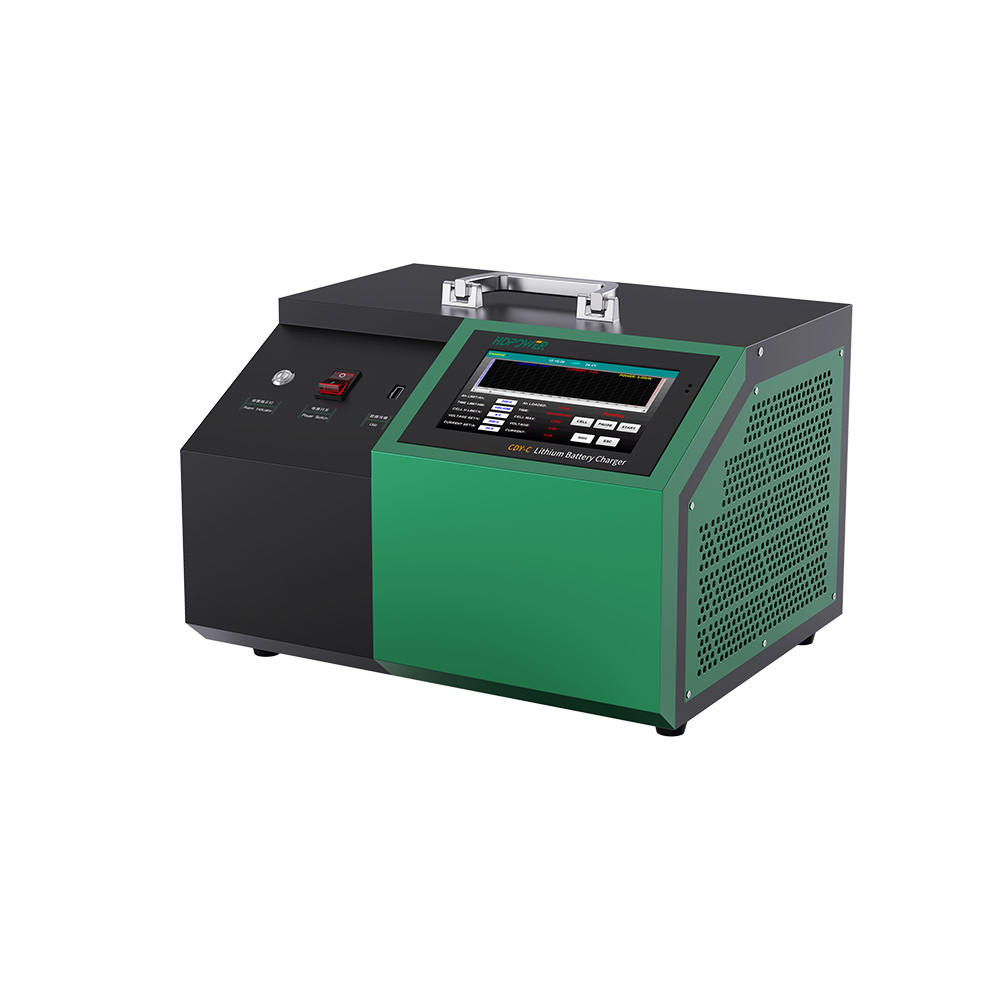

Overview
CDY-C24 portable lithium battery charger can perform intelligent control of the whole charging process of power battery, which is with the features of high power factor, low harmonic, high efficiency, lightweight and portable, etc. The charging modes are diverse as constant-voltage, constant-current and trickle charging, automatic operation to shut-off when full.It comes with a variety of extended communication interfaces (RS232, RS485, CAN, USB).
Features
● HD Display: Adopting 7-inch high-definition touch screen design, real-time display of charging status, clear and concise.
● Flexible working modes: Fully intelligent charging control, realize automatic conversion of equalizing and floating charging, adjust the charging mode at any time.
● Multi safety protection modes: Over-voltage, under-voltage, over-current, output short-circuit, anti-reverse connection protection and overheating protection.
● Self-calibration function: Equipped with voltage and current calibration function, which can calibrate and correct the measured value to ensure the measurement accuracy.
● Humanized & compact design: Simple operation, easy to learn and understand,easy to carry
