Overview

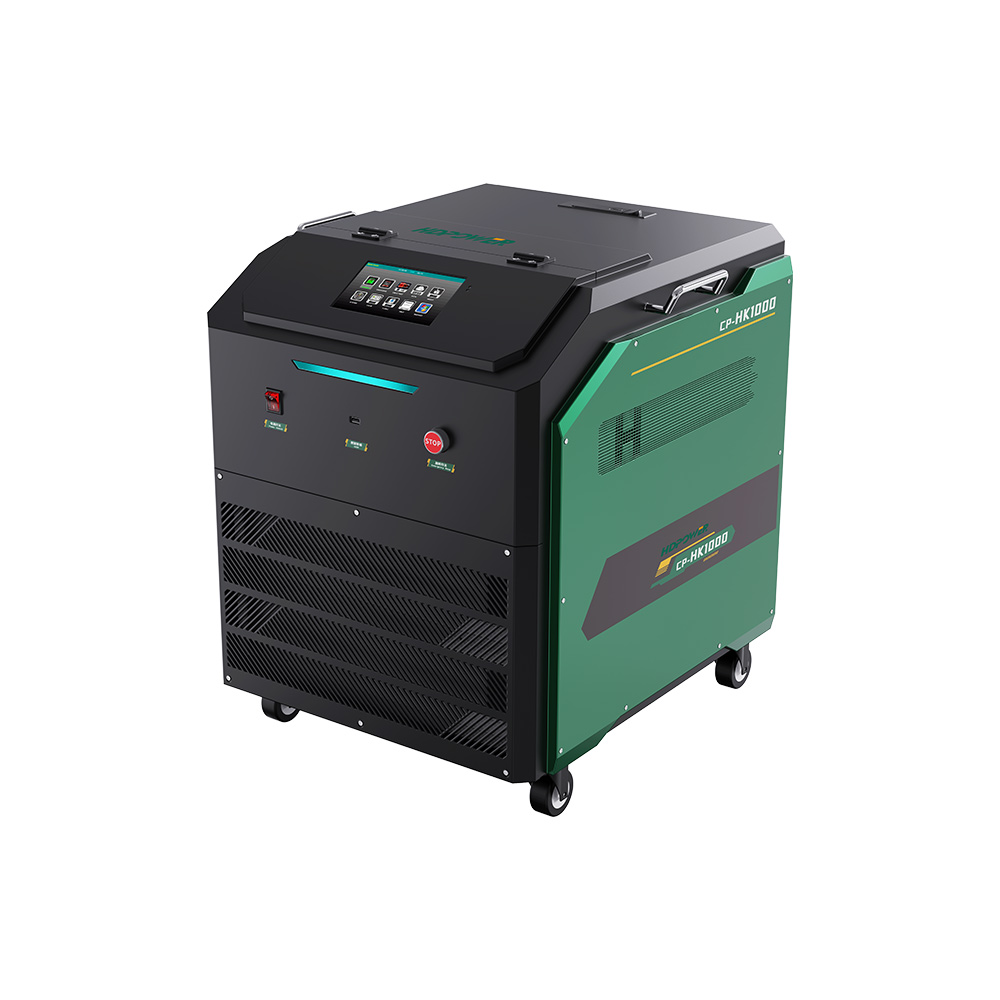

CP-HK1000 lithium battery charger/discharger adopts advanced bi-directional AC-DC conversion technology with high power and low harmonic characteristics. The equipment provides comprehensive battery performance testing and maintenance functions, supports in-depth testing of various battery types, and is widely used in areas such as peak shaving and valley filling for step-down batteries, battery capacity division testing, V2G energy storage applications, and charging and discharging testing for new energy vehicles.
Parameters
| Model | CP-HK1000 |
| Charging & discharging voltage | DC50~1000V |
| Voltage accuracy | 1%FS |
| Discharge and charge current | 0~100A（Max） 30kW |
| Current accuracy | 1%FS |
| Voltage & Current Resolution | PACK：0.01V ,CELL：0.001V |
| 0.01A | |
| Input voltage | AC 380V |
| Working mode | Constant current discharge, constant power discharge,
constant current charge + constant voltage charge, cycle test |
| Data communication | BMS communication (RS485, CAN) |
| Display | 7inch LCD touch screen，Resolution 1024×600 |
| Protection Performance | Host protection、Reverse connection、protection Abnormal protection、
Over-temperature protection、Emergency stop |
| Size | 660*615*700mm |
Features
Multi-functional, efficient maintenance
● Supports constant-current and constant-voltage charging, constant-current and constant-power discharging to meet diversified testing needs.
● Intelligent activation mode: customize charging and discharging rules and cycle times to effectively activate battery activity and enhance battery life.
Wide voltage compatibility, efficient charging
● Supports a wide voltage range of 2~500V, which is suitable for testing lithium iron phosphate, lithium ternary and other battery packs.
● Adopts constant current and constant voltage intelligent switching to improve charging efficiency by 30%, ensuring safe full charging and avoiding overcharging damage.
Real-time monitoring, safe and worry-free
● It is equipped with over-voltage, under-voltage, over-current, short-circuit, reverse connection, overheating and emergency stop, which guarantees the safety of equipment and battery.
● Real-time monitoring of monomer voltage/temperature (optional), automatic alarm and shutdown when abnormal.
Data management and traceability
● Supports local data saving and U disk export, recording test parameters, curves and fault information.
● It can bind the license plate number and battery number to realize the traceability of the whole maintenance process.
User-friendly design
● 7-inch high-definition touch screen (1024×600 resolution), simple and intuitive operation.
● Supports multi-language (Chinese/English), remote control (RS485/CAN).
Multi-mode simulation of real working conditions
● Discharging: constant current/constant power optional, simulating real load scenarios.
● Charging: constant current/constant voltage accurate control to meet different maintenance requirements.
