Parameters
| HDGC3932 Battery Activator | |||
| Voltage range | 1.5～16V (2V/6V/12V) | ||
| Discharge range | 1.7~～2.4V (2V) | 5.4～7.2V (6V) | 10.8～14.5V (12V) |
| Charge range | 1.7～2.4V (2V) | 5.4～7.2V (6V) | 10.8～14.5V (12V) |
| Discharge current | 0~100A | 0~60A | 0~30A |
| Charge current | 1~100A | 1~60A | 1~30A |
| Instrument Functionality |
|||

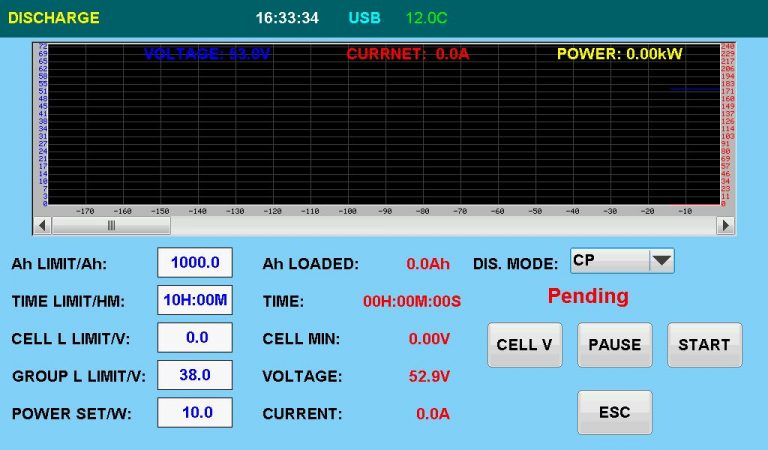

| Display | 7-inch LCD touch screen with 1024 x 800 resolution | ||
| Voltage measurement accuracy | ±0.5%FS+0.1V | ||
| Current measurement accuracy | ±1%FS+0.1A | ||
| Voltage accuracy | 0.01V | ||
| Discharge current accuracy | 0.01A | ||
| Data storage | Internal:16Gbit FLASH; External 16G storage | ||
| Data communication | RS485、USB | ||
| Working mode | Activation, constant-current, constant-voltage, float-charge | ||
| Protection performance (LCD display reminder + buzzer alarm) | |||
| Host protection function | Over-temperature, over-current, current runaway trigger shutdown protection | ||
| Abnormal protection | Power line drop, mains cable drop | ||
| Over temperature protection | Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging | ||
| Working environment |
|||
| Cooling mode | Forced air cooling | ||
| Temperature | Operating temperature : -5～50℃, Storage temperature : -40～70℃. | ||
| Humidity | Relative humidity : 0～90%(40±2℃) | ||
| Altitude | Available below 4000m | ||
| Power supply |
|||
| Voltage | single-phase three-wire system: 220VAC (-20% ~ +30%), frequency: 45 ~ 65Hz | ||
| Withstand voltage | Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min | ||
| Safety | Satisfies EN 610950 | ||
Overview

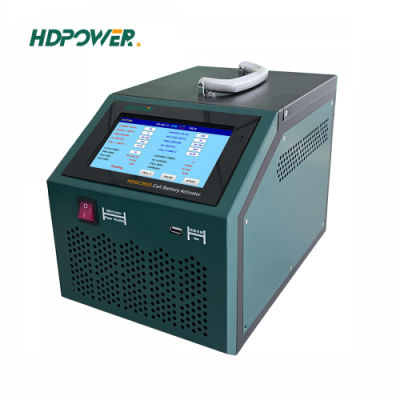

HDGC3932 activator fully utilizes the characters of high frequency, low voltage and high current to decompose the lead sulfate crystals adhered to the surface of battery plate in the role of directional current, which revert back to lead ions and realize the battery charge and repair.
HDCG3932 all-in-one terminal is used to perform constant current discharge,intelligent charge and cyclical charge&discharge, which can achieve the purpose of activation by cyclical & deep operation to active the battery activated substance.
Applications
Features
● HD Display: 7-inch touch screen with resolution of 1024*800, the military-grade touch panel to reach strong anti-interference ability.

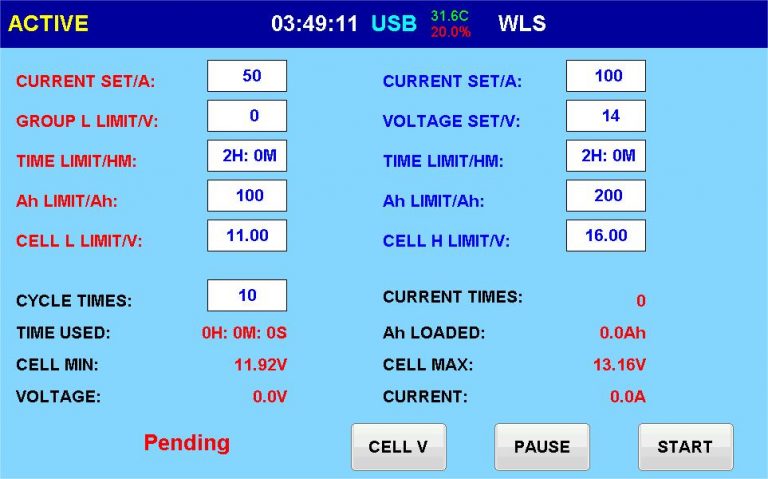

● Multi working modes: charge/discharge and cycle activation, cell accurate capacity measurement.
● Intelligent operation design: automatic recording and intelligent analysis of the entire test.
● Multi safety protection modes: over-current, short-circuit, high temperature, reverse polarity etc.
● High performance component: adopt polymer PTC to realize low power consumption and strong anti-surge ability.
● High-frequency wave width modulation (PWM) technology in charging: filtering, rectification, inverter, power efficiency conversion integration, built-in electromagnetic interference (EMI) surge protection circuit and microprocessor control technology.
● Charging&discharging parameters preset : multi templates parameter inside for different types of batteries, and automatically saved after power down and directly restart testing after power up.

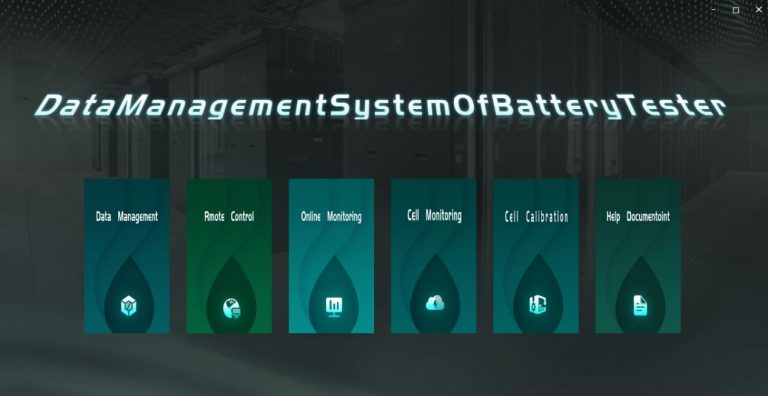

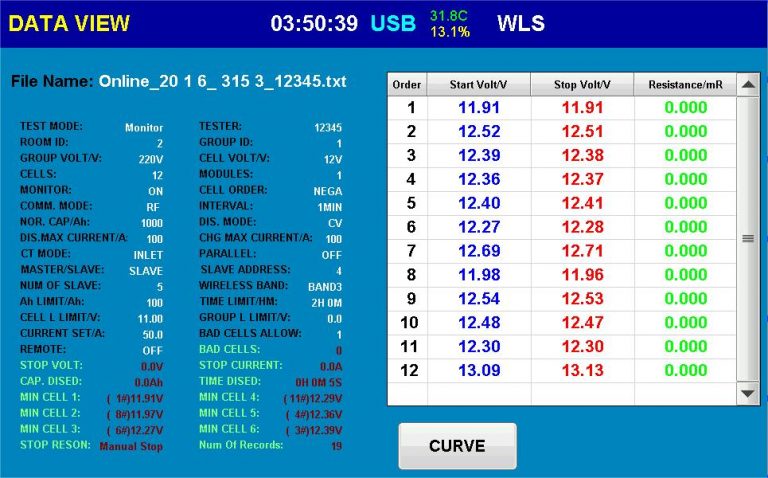

● Equip with professional analysis software:simultaneously display data table as voltage, current curves, single cell histogram etc., and automatically generate report in EXCEL/WORD to print.
● Powerful storage space: with internal 16G for 1000 groups discharging data and external 16G USB data reader
● Charging and discharging termination set via multi conditions: voltage at termination, discharging,current, capacity, discharge time.
● With activation and repair function:reduce the capacity decline and improve battery life.

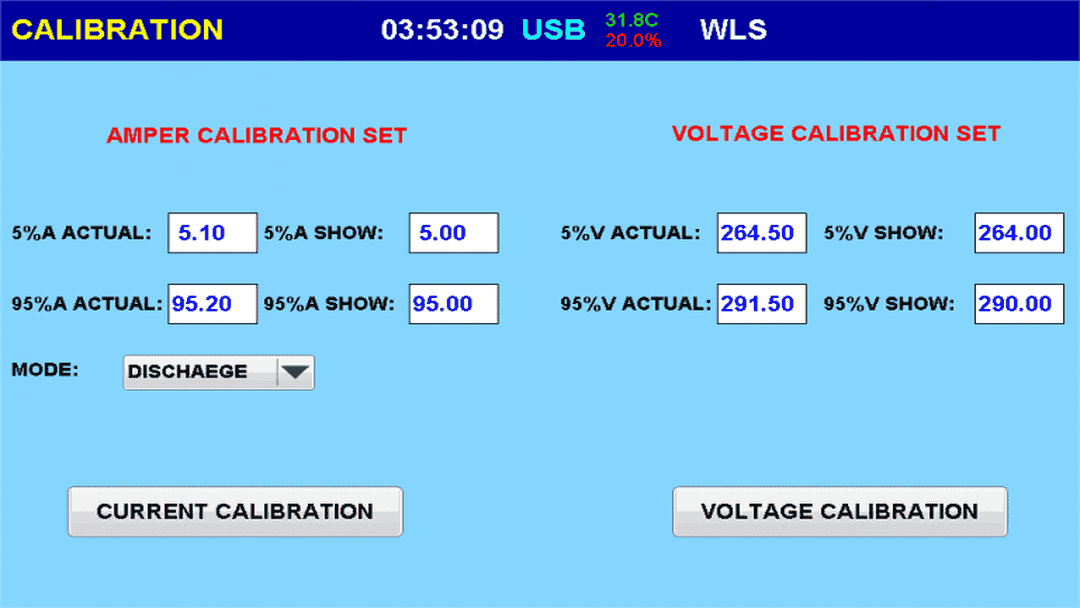

● Self-calibration function for high measurement accuracy

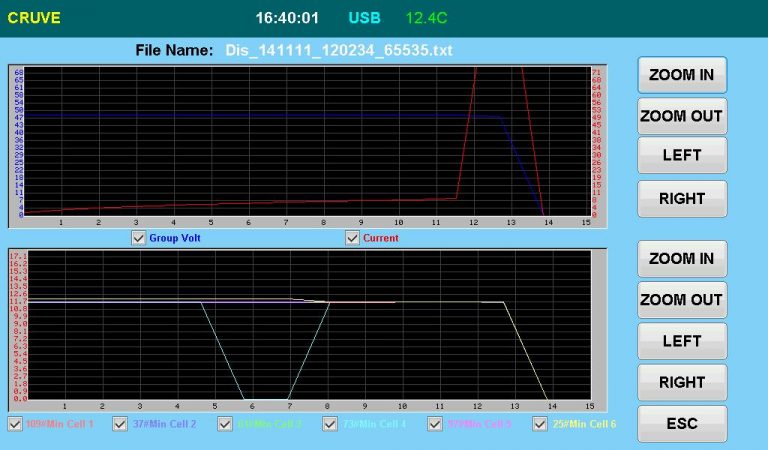

● Curve Viewing Function: data files view in graphs and waveform format
