Parameters
| Model Name | CP-F800 | ||||
| Voltage range | DC 10~800V | ||||
| Max. output power | 20KW | 40KW | |||
| Discharging current range | 0~50A (MAX) | 0~100A (MAX) | |||
| Power supply | 220V/AC±15% 50Hz | ||||

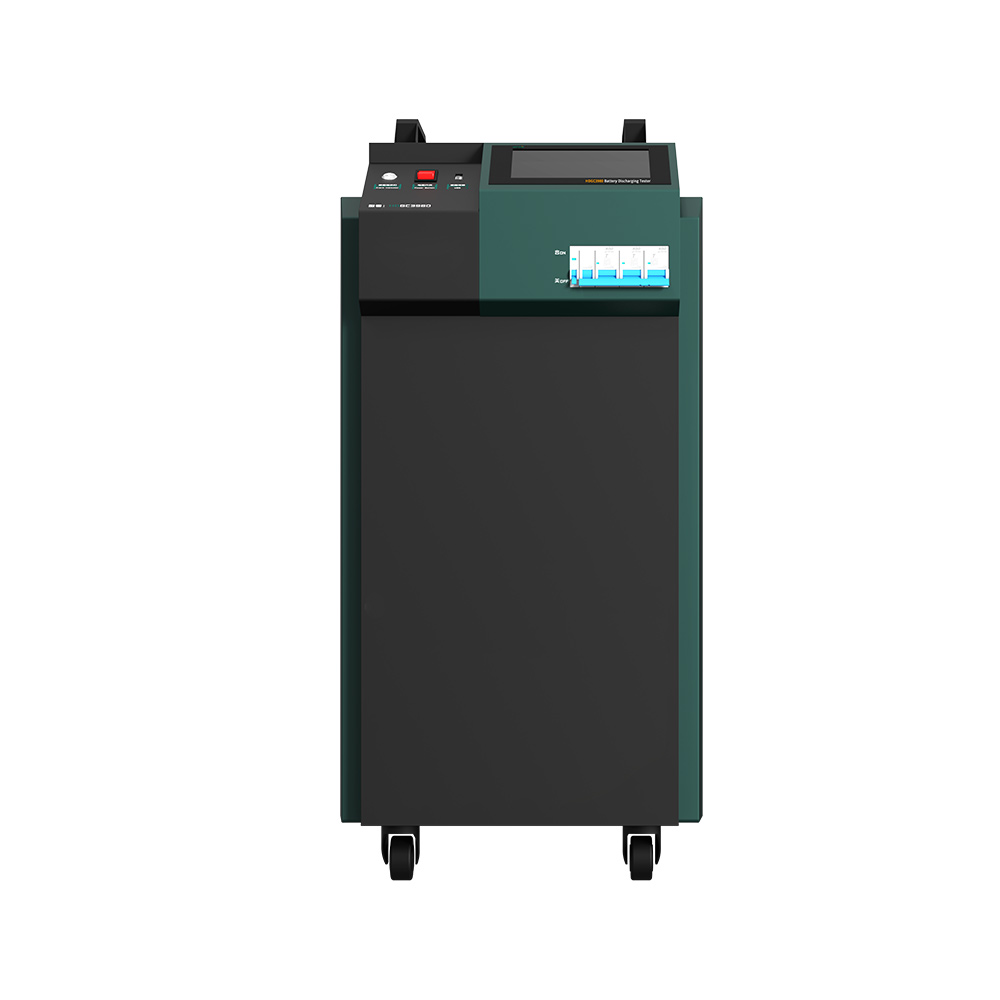

| Display | 7inch LCD touch screen,1024*600 | ||||
| Voltage accuracy | +0.5%FS@800V; Resolution：0.01V | ||||
| Current accuracy | ±1%FS; Resolution：0.01A | ||||
| Working modes | Constant current and constant power discharge | ||||
| Environment | Working temperature:-10~65℃，Humidity:0~90%,Altitude:<4000m | ||||
| Emergency protection | Equip with external open circuit breaker | ||||

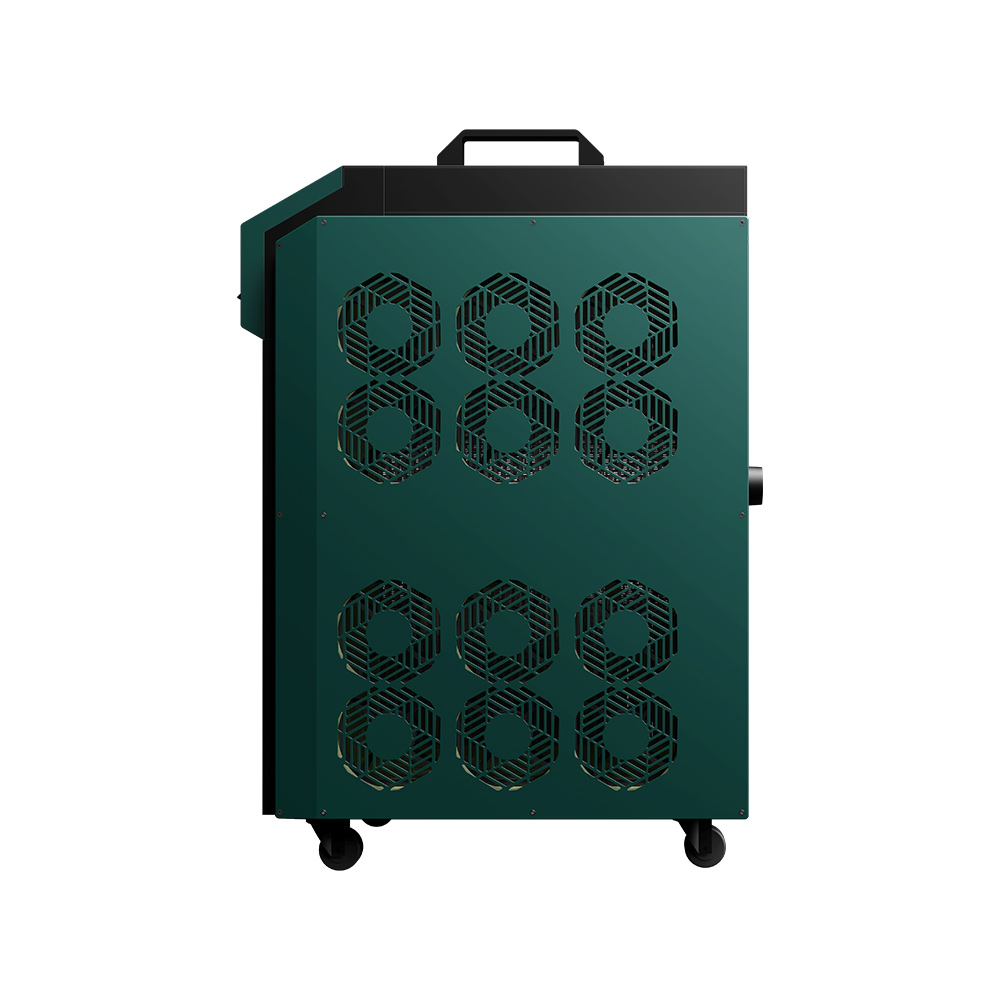

| Heat dissipation | Air cooling | ||||
Overview
CP-F series is used to perform quick discharging in battery dismantling, storage, transportation, repair, recycling of battery manufacturers and car factory etc., which is the ideal equipment to reduce the risk of battery storage and transportation.
Features
• Wide voltage design:
compatible with different battery PACK voltage ranges for discharge, one machine for multiple uses.
• Multi-mode discharge:
supports constant current discharge and constant power discharge modes, and can simulate various load conditions for battery pack tests.
• Intelligent operation:
simple operation, one-button discharge, efficient and intelligent, ensuring the safety of the discharge process.
• Portable design:
lightweight and portable, suitable for different occasions, meeting the needs of different types of customers.
