Introduction: In modern power systems, batteries are only as reliable as our ability to test and maintain them. A battery discharger machine – also known as a battery discharge tester or load bank – is a specialized device used to measure battery capacity and verify performance under load. By safely discharging batteries under controlled conditions, these machines provide critical insights into a battery’s health and ensure backup power systems (from data centers to electric vehicles) will perform when needed. In this article, we define what a battery discharger machine is, explain how it works, and explore its applications in industries like EVs, UPS, telecom, and energy storage. We also discuss key technical considerations (voltage range, discharge current, modes like CC/CP, data logging, safety), regional differences (110V vs 220V systems, CE/UL standards), provide a comparison of typical models, and offer best practices for using and selecting a battery discharger machine. The goal is to equip power system engineers, facility managers, and battery professionals with a clear, authoritative guide to these indispensable testing tools.
What is a Battery Discharger Machine and How Does It Work?

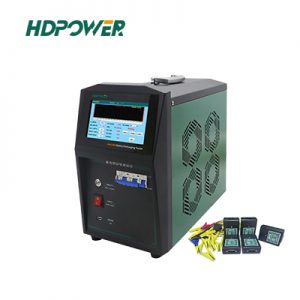

A battery discharger machine is a testing device used to discharge a battery at a controlled rate (usually constant current or power) in order to measure its capacity and observe its discharge characteristics. In essence, it acts as an electronic load, drawing current from the battery while monitoring voltage, current, and elapsed time. By doing so, the device can determine how much charge the battery can deliver (its amp-hour or watt-hour capacity) and how the voltage behaves over the discharge period (the discharge curve).
Typical battery discharger machines consist of several components: a load bank (which can be resistive or electronic) to dissipate or control the energy drawn from the battery, a power control unit to regulate the discharge rate, and measurement circuits (voltmeter, ammeter, or wattmeter) to record performance data. During a test, the machine applies a constant load to the battery – often in constant-current (CC) mode for capacity testing, though constant-power (CP) or even constant-resistance (CR) modes are also used depending on the application. Advanced discharger machines automatically adjust the load as the battery voltage falls (for example, increasing current in CP mode or vice versa) to maintain the set discharge profile. The process continues until the battery reaches a predefined end voltage or is fully discharged, at which point the machine stops the test to prevent damage from over-discharge.
How it works: The battery’s voltage and current are sampled at regular intervals throughout the test. Using these readings, the discharger calculates the total discharged capacity (e.g. in Ah or Wh) and often logs the discharge curve (voltage vs. time) for analysis. Because the test mimics real usage, it is considered the most definitive method to determine a battery’s true capacity under load. For instance, Megger’s TORKEL series (a popular battery discharge test system) emphasizes that discharge testing is the only test method that provides a comprehensive insight into battery capacity and is therefore an essential part of vigorous maintenance programs. In practical terms, a battery discharger machine answers the question: “Can this battery still supply the required power for the required duration?” by actually putting the battery to work in a controlled setting.
In addition to capacity measurement, many discharger machines allow users to simulate load conditions beyond a simple constant current. They may support custom load profiles or stepped loads to replicate the dynamic demands a battery experiences in service (for example, the varying power draw of equipment during a power outage or the acceleration of an EV). The load can be purely resistive (dissipating energy as heat through resistor banks) or regenerative, where the discharged energy is fed back into the grid or a sink – the latter is more energy-efficient for high-capacity systems. In summary, a battery discharger machine effectively places a battery under a real-world stress test in a safe, measurable way, allowing engineers to gauge performance, identify weaknesses, and ensure reliable operation of critical power systems.
Battery Capacity Testing and Load Simulation
One of the primary roles of a battery discharger machine is battery capacity testing. This is the process of fully discharging a battery from a full charge under controlled conditions to measure the total energy it can deliver. Capacity testing is considered the gold standard for assessing battery health – indeed, industry standards (like IEEE 450 for lead-acid batteries) treat a periodic load test as essential to verify if a battery still meets its rated capacity. No other test method provides the same level of insight; measuring a battery’s capacity via a full discharge is the most direct and reliable way to determine its state of health and remaining life. A battery discharger machine automates and safeguards this process, ensuring the battery is discharged at the prescribed rate and stopping at the correct cutoff voltage to prevent damage. The data collected (total amp-hours delivered, discharge time, and voltage curve) tells maintenance teams whether the battery can support its load for the intended duration or if it has deteriorated below acceptable levels (often a battery is considered due for replacement if capacity falls under ~80% of its rated value).
Beyond determining capacity, battery dischargers are invaluable for load simulation. In real-world operation, batteries experience various loads – from steady draws to sudden surges. Discharger machines can mimic these conditions to verify performance and stability. For example, in a UPS (Uninterruptible Power Supply) scenario, a discharge tester can simulate a power outage by placing a constant power draw on the backup battery bank, confirming that it will support the critical load for the required time. In telecom or data center applications, testers simulate the DC load of communication equipment during an outage. By applying resistive or electronic loads, the machine replicates how the battery behaves under different discharge rates – which is important because battery voltage and available capacity can vary significantly with load magnitude.
Modern electronic load banks often have multiple modes to simulate loads. The most common are Constant Current (CC) mode – where a fixed current is drawn regardless of battery voltage – and Constant Power (CP) mode, where the current is continuously adjusted to maintain a fixed power draw (watts) as the battery voltage declines. CP mode is useful for high-voltage or high-capacity batteries because it keeps the stress on the battery consistent throughout the test, more closely emulating something like an inverter load that draws roughly constant power. Some testers also offer Constant Resistance (CR) mode (or stepped loads), which mimics a passive load that decreases current as voltage drops. Each method has its use: CC is typically used for standardized capacity tests (as in IEEE protocols), CP is used to simulate devices like motors or inverters, and CR is akin to simpler load banks (heaters, etc.) for basic discharge exercises.
Furthermore, advanced battery discharger machines can perform regenerative discharge. In a regenerative setup, instead of turning all the discharged energy into heat, the system uses a bidirectional power converter to push the energy back into the facility’s AC supply (or a dummy grid). This is particularly valuable for testing large battery banks or EV batteries where a full discharge involves a large amount of energy; energy recovery greatly reduces heat generation and electricity waste. For example, some laboratory-grade battery test systems can recycle over 90% of the discharge energy back to the grid, improving efficiency and keeping the test environment cooler. Whether resistive or regenerative, the ability to simulate real operating conditions with precision is what makes battery discharger machines indispensable. They ensure that when a battery is called upon in an emergency or high-demand situation, there are no surprises – any drop in performance would have been caught during a controlled test rather than during a critical power event.
Key Applications in EVs, UPS, Telecom, and Energy Storage
Battery discharger machines find use across a broad range of industries and applications wherever reliable battery performance is critical. Some of the key application areas include:
● Electric Vehicles (EVs) and Transportation: In the EV industry, lithium battery discharger are used in both development and maintenance of battery packs. Manufacturers and researchers use them to verify the capacity of battery modules and packs, to balance cells, and to profile how an EV battery behaves under various load conditions (such as acceleration, cruising, or regenerative braking). For instance, fleet operators or reuse/recycling facilities may discharge and test retired EV battery packs to evaluate remaining capacity for second-life energy storage use. Given that EV battery packs operate at high voltages (often 300–800 V DC), specialized discharger machines are employed that can handle these voltages safely while logging detailed data on each cell or module’s performance. By simulating real driving loads through a controlled discharge, technicians can identify weak cells, verify pack integrity, and ensure vehicle range and safety requirements are met.
● UPS Systems and Data Centers: Uninterruptible Power Supply (UPS) systems rely on strings of batteries (often lead-acid or lithium-ion) to provide backup power in case of mains failure. Regular load testing of these batteries is a cornerstone of facility maintenance. A battery discharger machine can be connected to a UPS battery bank to perform a capacity discharge test, confirming that the battery system can support the critical load (servers, medical equipment, etc.) for the intended runtime. This is typically done as part of scheduled maintenance (many organizations perform an annual or biannual full discharge test on their UPS batteries per IEEE recommendations). By using a discharge tester, early detection of battery degradation is possible – the test will reveal if any battery blocks are falling below acceptable capacity or voltage levels under load, allowing proactive replacement before a failure occurs. In mission-critical environments like data centers, telecom hubs, hospitals, and financial systems, such testing provides confidence that backup batteries won’t be a single point of failure. Modern load banks for UPS testing often include the ability to monitor individual cell voltages during discharge, helping pinpoint any weak links in a large battery string.
● Telecom and Utility Backup Batteries: Telecommunication networks (cell towers, central offices, etc.) and utility substations often use 48V DC battery banks or higher-voltage strings for backup power to keep communication equipment and control systems alive during outages. Battery discharger machines are used in these sectors to ensure the backup batteries (often VRLA or Ni-Cd batteries) are healthy. Similar to UPS testing, a controlled discharge test will validate that the telecom battery bank can carry the load of the base station or switching equipment for the required duration. Considering the remote and harsh environments many telecom batteries operate in, discharge testing under realistic load can also help assess performance under temperature variations and identify batteries that might unexpectedly fail. Some testers used in the field are portable units that can be transported to sites (even outdoor cell tower enclosures) – these allow technicians to conduct on-site battery load tests without taking systems offline for too long. The result is higher network reliability and informed decisions on battery replacements, which is particularly vital for telecom providers that must maintain uptime.
● Renewable Energy Storage and Microgrids: Renewable energy systems, like solar PV or wind installations, commonly include battery energy storage to buffer intermittent generation. These battery banks (which might be lithium-ion, lead-acid, or other chemistries) must deliver power when the sun isn’t shining or the wind isn’t blowing. Over time and multiple charge/discharge cycles, the effective capacity of these batteries can decline. Battery discharger machines are used to test and balance energy storage batteries to ensure the reliability of the renewable system. By simulating nightly discharge cycles or peak load events, operators of solar farms or microgrids can verify that the storage will perform as expected during critical periods. For example, a discharge test might reveal that one string in a battery bank has significantly less capacity, indicating an imbalance or fault that can then be addressed (replacing that string or reconditioning it). In large energy storage facilities, battery testing systems might be permanently installed to run routine discharge exercises and communicate with battery management systems (BMS). The insights gained help in maintaining optimal efficiency and extending battery life in renewable storage applications.
● Battery Manufacturing and R&D: In battery production lines and research labs, discharger machines play a role in quality control and development. Manufacturers often perform a controlled discharge on new batteries (especially large-format batteries) to verify they meet specifications before shipping. In R&D, engineers cycle batteries using charge/discharge equipment to study performance, capacity fade, and to validate new designs or chemistries. Sophisticated battery test systems can cycle cells or packs through hundreds of charge-discharge cycles with precise control, logging data each cycle. This is critical in developing batteries for EVs or grid storage where longevity and safety are paramount. The data logging and programmable profiles features of advanced discharger (and charger) machines allow for simulation of real-world duty cycles in a lab setting, accelerating development of better batteries. Additionally, some battery discharger machines are used for battery maintenance or reconditioning – for example, battery activators or balancers which discharge and recharge cells to eliminate memory effect or balance state-of-charge differences. All these applications underscore that whether in the field or the factory, the battery discharger machine is a versatile tool for anyone working with batteries.
Technical Features and Considerations (Voltage, Current, Modes, Data, Safety)
When selecting or using a battery discharger machine, understanding its technical specifications and features is crucial to ensure it meets your needs. Here are some key technical considerations to keep in mind:
● Supported Battery Voltage Range: Perhaps the most fundamental spec is the DC voltage range that the discharger can handle. Battery systems vary widely – from 12 V automotive batteries to 48 V telecom strings, up to 300–800 V EV battery packs or even higher in some grid systems. It’s important to choose a machine that covers (or slightly exceeds) your battery’s maximum voltage. Portable load banks often support ranges like a few volts up to ~60 V or ~130 V for servicing 12 V, 24 V, 48 V, and 110 V-class systems. More advanced industrial dischargers can accommodate hundreds of volts; for instance, DV Power’s BLU series testers can work with any battery string from 0.9 V up to 800 V DC in their various models. Similarly, specialized EV battery dischargers might cover a 50–800 V span to handle both low and high end of pack voltage. Verify that the machine’s voltage measurement accuracy and resolution are suitable as well (many specify ±0.5% or better voltage accuracy over the range). Using a tester with the appropriate voltage range ensures accurate results and avoids damaging the tester or the battery.
● Discharge Current Capacity: The next critical factor is how much current (amps) the device can draw from the battery. Higher discharge currents enable faster capacity tests and the ability to test large-capacity batteries under realistic heavy loads. Battery discharger machines are available in various current ratings – smaller units might cap at 20–50 A (sufficient for single batteries or small packs), while robust load banks can draw 100–300 A or more. For example, some portable battery load banks allow discharge currents up to 300 A on 48 V systems, and high-end systems can reach 350 A or higher, with the option to parallel multiple load units for even greater current. Always check how the current capability might derate at different voltages: many dischargers have a power limit, meaning at lower voltages they can push more amps, but at high voltage the max current may be reduced so as not to exceed the kilowatt rating. For instance, a tester rated for 20 kW might do 200 A at 100 V but only 50 A at 400 V. Discharge current accuracy and stability are also important – quality machines use feedback control to hold the set current constant within a tight tolerance even as the battery voltage changes. Choose a discharger with sufficient current for your largest expected load test. If you need to simulate high surge currents or test large batteries quickly, look for units that support parallel operation of multiple identical units to scale the load safely.
● Discharge Modes and Profiles: As discussed, battery dischargers can operate in different modes. Constant Current (CC) mode is the most common for straightforward capacity tests (e.g. discharge at 10 A until empty). Constant Power (CP) mode is very useful for high-voltage batteries or when simulating equipment power draw – the tester will increase current as voltage falls to keep watts constant. Many advanced machines offer both CC and CP modes, and some add a Constant Resistance (CR) mode or stepped load settings, which effectively simulate a fixed load impedance. For instance, the Megger Torkel or DV Power BLU series allow selection of CC, CP, or CR (and even user-defined load profiles) in their software. Another mode occasionally available is Constant Voltage (CV) cut-off or hold (though CV is more relevant in charging, some dischargers might allow you to hold a battery at a set voltage by varying current, for special test purposes). Modern testers may also let you program custom load profiles – sequences where the load changes over time to mimic a duty cycle (e.g. 10 A for 30 minutes, then 50 A for 5 minutes, etc.). This can be useful for simulating real-world usage patterns. When evaluating a discharger, ensure it supports the mode you need. Most battery capacity tests are done in CC mode per standards, but if you want to do performance testing, having CP and dynamic profile capability adds flexibility. The control electronics should be able to seamlessly adjust between modes and maintain stability to avoid sudden current spikes that could harm the battery.
● Data Logging and Software: A key advantage of using a battery discharger machine (versus a manual load) is the data it can collect and store. Look for a tester with robust data logging features: at minimum it should record total discharge time and capacity (Ah or Wh). High-quality testers log the voltage and current throughout the test at set intervals, and many record individual cell or block voltages if connected to a battery monitoring module. For example, some systems include wireless modules to monitor each battery in a string during discharge. Real-time monitoring on a display and PC connectivity are also important. Many machines have built-in LCD touch screens that show live discharge graphs and stats. They often also support connection to a computer via USB, Ethernet, or Wi-Fi for control and data download. As an example, Megger’s TORKEL units store all test results internally and allow easy transfer to PC via USB drive, and DV Power testers are compatible with software that can generate detailed reports and graphs automatically. Ensure the device has enough memory (some have internal memory for dozens or hundreds of test records) or an option to use a USB flash drive/SD card. If you manage many batteries, the ability to export data and produce standardized reports (e.g. Excel or PDF format) can save a lot of time. Also consider whether the unit offers remote control or integration – for instance, some can be controlled via SCADA or have USB/RS485 connections for automation. In summary, a good battery discharger will not only test your battery but also give you the data needed to analyze trends, compare against past results, and satisfy compliance record-keeping.
● Safety Features: Safety is paramount when working with batteries, as large currents and high energy levels are involved. Reputable battery discharger machines incorporate multiple safety mechanisms to protect both the user and the equipment. Common safety features to look for include:
◦ Over-Temperature Protection: The load bank will heat up during discharge (especially resistive types). Quality units monitor their internal temperature and will automatically reduce load or shut down if overheating occurs. For instance, a tester might have temperature sensors on its resistors and stop the test if they exceed a threshold like 75 °C. Cooling fans are often redundant, and a blocked airflow or fan failure detection will trigger an alarm or shutdown to prevent heat damage.
◦ Over-Current and Over-Voltage Protection: The machine should prevent drawing more current than set (current runaway protection) and withstand momentary voltage spikes. Many have fast-acting fuses or electronic limiting circuits. If the battery voltage falls to the final cutoff level, the device should automatically stop drawing current. Similarly, if the battery is inadvertently higher voltage than the device’s range, it should issue an alarm. High-end units often provide audible and visual alarms for conditions like voltage out of range, current out of range, or reverse polarity connection.
◦ Reverse Polarity Protection: Accidentally hooking up the battery with reverse polarity can be dangerous. Most testers include reverse polarity protection – typically an alarm and prevention of energizing the circuit if polarity is wrong (often via an internal diode or relay mechanism).
◦ Emergency Stop: An emergency stop pushbutton or cutoff is usually present so that the operator can instantly halt the test if something goes wrong. This is a critical feature for any high-power equipment. As noted in one product example, an external emergency stop switch allows immediate shutdown of the discharge in progress.
◦ Spark Prevention: When connecting load banks to batteries, sparking can occur. Some designs incorporate pre-charge circuits or use connectors that mitigate arcing. For instance, one system touted a spark-free design which likely includes measures to avoid sparks when connecting or disconnecting the test leads.
◦ Standards Compliance: Finally, check for compliance with relevant safety standards and regulations. Look for CE marking for European compliance and UL listing or equivalent for North America. High-quality dischargers adhere to standards like IEC 61010 or UL 61010 (safety requirements for electrical test equipment), and manufacturers will often specify this. They may also comply with IEC 62619, UL 1973, or other battery-related safety standards if applicable. As a general rule, ensure the device is from a reputable manufacturer that follows international safety and EMC standards – this not only assures safety but also that the unit will be accepted by safety inspectors and insurers. Modern battery test equipment incorporate extensive safety features and meet UL, IEC, and ISO standards to ensure safe operation and global market acceptance. Never compromise on safety features, especially for high-power discharge testers, as the stakes with large batteries are high.
In short, when reviewing technical specs of a battery discharger machine, give equal weight to its electrical performance (voltage/current capacity and control precision) and its data capabilities and safety features. The best choice is a unit that comfortably handles your application’s electrical demands and provides reliable safeguards and rich data, making the process of battery testing efficient and safe.
Regional Variations and Standards (110V/220V Systems, CE/UL Compliance)
When deploying a battery discharger machine, it’s important to consider regional electrical standards and requirements. While the core function of the tester (discharging DC batteries) is the same everywhere, practical aspects like input power and certification can differ:
● Mains Power (110V vs 220V): Different regions use different AC mains voltages and frequencies (e.g. North America typically 110–120 V at 60 Hz, Europe and much of Asia 220–240 V at 50 Hz). Battery dischargers themselves work on the DC side, but they often require AC power for their internal controls, cooling fans, and in some cases to feed energy back (for regenerative types). It’s crucial to ensure the discharger machine is compatible with your local AC supply. Many modern units have a wide-range AC input or come in variants to support both 120V and 230V lines. For example, an EV battery discharger spec might list Single-phase 200~265 VAC, 50/60 Hz (customizable) – indicating that the standard model expects ~220V, but a version for 120V can be provided if needed. Always check the AC input voltage and frequency range of the equipment and whether it uses single-phase or three-phase power. High-power load banks (e.g. those dissipating tens of kW or more) may require a three-phase 380–480 V AC supply to operate the cooling and load circuits. Smaller portable testers usually plug into a standard wall outlet. If you plan to use a discharger at different sites, a unit with auto-ranging input (accepting say 100–240 V AC) adds convenience. Additionally, ensure you have the correct outlet types or adapters for the regions where it will be used.
● Certifications and Compliance (CE, UL, etc.): Electrical testing equipment must meet regional safety regulations. In the European Economic Area, devices must have the CE mark, indicating conformity with EU directives (low voltage directive, EMC, etc.). This typically involves compliance with EN versions of IEC standards (for instance, EN 61010-1 for lab equipment safety, EN 61326 for EMC). In the United States and Canada, having a UL or CSA listing (or other NRTL certification) is often required for use in commercial facilities – this certifies the product meets relevant UL standards for safety. When selecting a battery discharger machine, look for documentation of testing to standards like UL 61010-1 or UL 508 (industrial control equipment) for the US, and IEC/EN 61010 for international. Many manufacturers will advertise compliance to both CE and UL to cater to global markets. Beyond general safety, there are also battery-specific standards; for instance, IEEE has standards for how to perform battery discharge tests (IEEE 450, IEEE 1188, etc. as mentioned) – while these guide the procedure rather than the equipment design, using a tester that facilitates compliance with those test methods (for example, by allowing appropriate discharge rates and data recording) is valuable. Some regions may have specific guidelines for equipment used in certain industries (e.g. NEBS for telecom equipment in the US, which might cover battery testing devices in telco environments). If your application is subject to particular regulations (say, testing batteries in a nuclear plant or aviation context), ensure the vendor can clarify compliance with any niche standards. Generally, a well-designed battery discharger from a reputable supplier will adhere to global safety and EMC standards, but it’s a due diligence step to verify those marks (CE, UL, FCC, etc.) for your region. Not only is this about legal compliance, it’s also about ensuring the machine has been independently tested for safety – a critical reassurance when working with high-energy battery systems.
● Regional Battery System Norms: Another subtle regional aspect is the typical battery system nominal voltages. For instance, many North American DC power systems for utilities use 125 V DC batteries (which is 60 cells lead-acid, about 2.2 V/cell float), whereas European systems might use 110 V DC (55 cells) or 220 V DC for substation backup. Telecom worldwide is standardized around 48 V nominal. Renewable energy storage can be very variable, but many off-grid systems are 48 V, whereas grid-tied battery containers might be 600–800 V. The reason this matters: you may want to choose a discharger machine optimized for the range you use most. If you primarily test 48 V strings, a 0–60 V unit with higher current output might be better (and more cost-effective) than a 0–500 V unit that can handle 500 V but provides less current at 48 V. Conversely, if dealing with 380 V nominal battery banks (common for large UPSs), ensure the tester can handle up to ~430 V which is the charge voltage for those systems. Manufacturers sometimes offer different models or series targeted at these ranges – for example, one model for 12–60 V, another for 50–300 V, another for 300–600 V, etc. It’s worth matching the equipment to the prevalent battery spec in your region or industry.
In summary, pay attention to the AC input requirements of the discharger machine and the safety certifications needed for your locale. Using a machine that is not properly certified could not only pose safety risks but also liability issues. Always opt for equipment that meets or exceeds the electrical standards of where it will operate. With the right model in hand, you can conduct battery tests confidently knowing both the machine and your facility are in compliance with regional norms.
Comparison of Battery Discharger Models and Specifications
To better understand the landscape of battery discharger machines, it’s useful to compare some typical models or categories side by side. The table below highlights three example classes of battery discharger equipment, illustrating how their specifications differ to suit various needs (from low-voltage, high-current applications to high-voltage or regenerative systems):
|
Specification |
Portable 48V/110V Tester(Low Voltage, High Current) | High-Voltage Pack Discharger(EV/Industrial Systems) | Regenerative Test System(Bidirectional Lab Equipment) |
|---|---|---|---|
| DC Voltage Range | ~12 V – 150 V DC | ~50 V – 800 V DC | ~50 V – 1000 V DC |
| Max Discharge Current | Up to ~300 A (at lower voltages) | Up to ~100 A (derated at high V) | Up to ~200 A (with current recovery to AC) |
| Max Discharge Power | ≈ 10–20 kW (limited by voltage × current) | ≈ 20–50 kW (higher voltage but moderate current) | ≈ 100+ kW (often scalable with multiple units) |
| Discharge Modes | CC, CP modes | CC and CP modes (auto electronic load control) | CC, CP modes (bidirectional; can also charge battery) |
| Energy Handling | Dissipativeresistiveload (converts energy to heat) | Dissipativeresistiveload (forced-air cooling) | Regenerativeload (feeds energy back to grid) |
| Notable Features | Highly portable, often passively cooled or small fan; ideal for telecom and UPS batteries (e.g. 48V strings). Typically has local meter displays or basic logging. | Designed for EV packs and large UPS systems; requires robust cooling, multi-meter monitoring, and PC software for control. Safety features for high DC voltage (arc suppression, etc.) are crucial. | High-end system for laboratory or large-scale testing; usually modular cabinets withbidirectionalpower supplies. Offers precise control, cycling (charge/discharge), and energy recovery – useful for repetitive testing and minimizing electricity use. |
| Ideal Use Case | Maintenance ofbackup batteriesin telecom, data centers, and industrial UPS – where batteries are ~48–120 V and high test currents are needed to simulate outage loads. Also suited for testing many small batteries quickly. | Commissioning and routine testing ofhigh-voltage battery bankssuch as those in electric vehicles, grid storage, or substations. Ensures that full-string performance is verified under load; often used by manufacturers or service teams dealing with 300–800 V systems. | Research & Development, battery cycling, and large-scale battery system testing (like EV pack development or grid storage trials) where efficiency matters. Can perform extended cycling without overheating, and feeds power back to reduce cost. Typically found in test labs and by advanced battery analysis professionals. |
Table: Comparison of representative battery discharger machines in different classes. Specifications will vary by manufacturer, but this gives an idea of how a low-voltage load tester might differ from a high-voltage one or a regenerative test system. Always consult specific product datasheets for exact figures.
As illustrated, the choice of battery discharger depends on the application’s demands. For a facility manager maintaining a 48V UPS bank, a portable resistive load tester with high current output is ideal. On the other hand, an engineer testing EV battery packs will need a discharger with a very wide voltage range and adequate power handling, possibly with software to analyze cell-level data. And for extensive battery cycle testing (charging and discharging hundreds of times), a regenerative system provides both the needed precision and energy savings by returning power to the grid instead of turning it into heat.
This comparison underscores the importance of matching the tester to your requirements: consider the voltage and capacity of your batteries, the frequency of testing, and whether the added complexity (and cost) of features like regenerative capability is justified. In many cases, manufacturers like HD Power, DV Power, Megger, Chroma, etc., offer a lineup of models to choose from – ranging from basic portable units to advanced systems – so you can select one that closely fits your specs without overpaying for features you don’t need.
Best Practices for Usage and Selection of Battery Discharger Machines
Finally, to maximize the value of a battery discharger machine, it’s important to follow best practices in its use and to consider key factors when selecting a unit to purchase. Below we provide usage tips for safe and effective battery testing, as well as selection guidelines to help choose the right machine for your needs:
Usage Best Practices:
● Ensure Batteries are Fully Charged Before Testing: For a valid capacity test, start with the battery at 100% state-of-charge (or as specified by the test standard). This provides a baseline and ensures the capacity measurement is meaningful. Many testers and standards recommend an equalization charge or at least a top-off charge before a discharge test. Testing partially charged batteries will not give an accurate measure of full capacity.
● Allow Batteries to Rest After Charge: It’s often good practice to let the battery rest for a short period after charging and before beginning the discharge test (to let surface charge dissipate in lead-acid batteries, for example). This helps in getting stable, consistent readings, especially for capacity tests per IEEE guidelines. Typically 2 hours of rest for lead-acid is recommended, though follow your battery type’s guidelines.
● Set Appropriate Discharge Cutoff Criteria: Configure the tester’s stop conditions conservatively. Usually this means setting the end-of-discharge voltage according to battery specs (e.g. 1.75 V/cell for a 2V lead cell under load, or a BMS cutoff for lithium-ion modules). Most dischargers allow setting a cutoff voltage, total discharged amp-hours, or a timer as safety stops. Ensure these are in place so the test terminates safely once capacity is determined, preventing over-discharge which can damage batteries. It’s also wise to set the tester’s internal safety thresholds (like over-temp or over-current) if they are adjustable.
● Monitor the Test (Especially Initial Runs): While modern battery discharger machines are often automated, it’s good practice to keep an eye on the first few tests or any test on a new battery bank. Watch for any signs of trouble – excessive heating of connections, unusual noise from the load bank, or batteries getting hot or emitting odor (in case of failures). The data on the tester’s screen can alert you to anomalies, like a rapid voltage drop indicating a bad cell. Being present allows you to hit the emergency stop if needed. Once you’re familiar with a system’s behavior, the tester can often be left to run and automatically stop when done, but periodic checks are still prudent.
● Provide Adequate Ventilation and Cooling: Resistive dischargers can put out a lot of heat. Use them in a well-ventilated area, away from flammable materials. Ensure the fan inlets/outlets are not blocked. If testing large batteries that might emit hydrogen (lead-acid), ensure the room has ventilation to prevent gas buildup. Keep the ambient temperature within the range specified for the tester (often 0–50 °C), as extreme temperatures can affect both the battery performance and the tester’s cooling efficiency.
● Follow Manufacturer and Industry Guidelines: Adhere to any procedural steps given by the equipment manufacturer (such as connection sequence, warm-up or calibration routines, etc.). Also, align your testing program with industry standards and recommendations. For example, IEEE 450 (for vented lead-acid) and IEEE 1188 (for VRLA) recommend performing a capacity discharge test at least every 1–2 years or when capacity is suspect. Regular testing according to such standards not only ensures reliability but may be required for compliance in certain regulated industries. Keep records of each test – many testers facilitate this via report generation, but also maintain a logbook or digital archive as evidence of maintenance.
● Allow Cool-Down Between Tests: If you need to perform multiple discharge tests back-to-back (for example, cycling a battery or testing multiple strings sequentially), be mindful of the load unit’s duty cycle. Many portable load banks are rated for continuous operation, but some might have a recommended cool-down after a heavy discharge to prolong their life. Follow the duty cycle guidelines (e.g. a tester might specify it can do one hour at full load and then needs 15 minutes off). This prevents overheating of internal components.
● Recharge Batteries Promptly After Test: Especially for backup power systems, remember to recharge the batteries immediately after a capacity test. They will be left in a discharged state at the end of the test, which could leave your system unprotected if an outage occurs. Coordinate with operations so that a discharge test is done in a maintenance window and batteries are restored to service (charged) right afterward. For lead-acid batteries, also recharge soon to avoid any chance of sulfate crystal buildup due to sitting discharged.
Selection Tips:
● Match the Tester to Your Battery Bank Voltage and Type: As highlighted earlier, choose a discharger machine whose voltage range comfortably covers your battery systems. If you manage multiple systems (say a 48V telecom and a 480V UPS bank), you might need a more versatile unit or even two different testers optimized for each. Also consider battery chemistry – virtually all dischargers can test any chemistry as they simply draw current, but some have features like internal resistance measurement or integration with battery management systems that might target a specific chemistry (e.g. lithium BMS connectivity). If testing lithium-ion batteries, ensure the tester can interface with any BMS or at least won’t conflict with BMS protections (some lithium packs will cut off if they detect certain conditions – the tester should be able to work within those parameters or you may need to bypass BMS for testing with caution).
● Consider Discharge Capacity (Current and Power) Needs: Evaluate the largest test you’ll perform. This means the highest current or power you’ll need to draw. For example, if you plan to do a 15-minute performance test on a large UPS battery, the current might need to be very high to simulate the full load (because in 15 minutes you’re drawing four times the current of a 1-hour rate). Make sure the discharger can handle that current continuously. If not, you may end up doing longer discharge tests at lower currents, which might not simulate reality. Some scenarios: UPS load testing often uses 0.1–0.2C currents for 1–3 hours; datacenter generator battery tests might require very high amps for short bursts. If your needs exceed what a single unit can do, consider a system that allows parallel connection of multiple units or extra load modules. However, factor in practicality – two smaller units might be more cumbersome than one larger unit. Also ensure the power dissipation rating (in kW) is sufficient so the tester won’t overheat or cut out mid-test.
● Portability vs. Fixed Installation: Determine if you need a portable tester that can be easily moved to different sites or a permanently installed load bank. Portable units are typically on wheels or suitcase-style and can be used across multiple battery banks in a facility or even transported between locations (some are light enough to be carried, others might weigh 50–100 kg and have castors). Fixed systems could be part of a battery monitoring setup where they are wired into a battery system and can be activated remotely or on a schedule. For facility managers with many distributed battery systems, a portable solution is often more cost-effective (one tester can service all). For large stationary battery installations (like a utility energy storage system), a built-in load test function might be desired for frequent testing. So, decide which form factor suits your operations.
● Data and Software Features: If you are a data-driven operation or need detailed analysis for each test, invest in a machine with advanced software. This includes the ability to connect to a PC to plan tests and download results, real-time monitoring of individual cells (with attachments or modules), and automatic report generation. Such features are invaluable for identifying trends, such as gradually declining capacity over successive tests. Check that the software is compatible with your computers (Windows, etc.) and is user-friendly. Some vendors provide cloud connectivity or mobile apps, which could be a plus if you want remote monitoring. On the other hand, if you just need a basic health check and will record results manually, you might not need to pay extra for fancy software. However, given the long life of these machines, it’s often worth having the capability – you may grow into using it as your battery program matures.
● Safety and Build Quality: Always choose a well-built unit with strong safety credentials (as discussed in the technical section). Read reviews or get demos if possible to assess build quality – e.g. the sturdiness of cables and clamps (since high currents require heavy-duty connections), the clarity of the interface, and the responsiveness of support from the manufacturer. If testing large batteries, ensure the included test leads are of adequate gauge and length (voltage drop in long cables can affect tests; some systems come with voltage sense leads to compensate for this). If not included, you might have to source appropriate cables separately. Verify the accessory kit – many battery dischargers come with various connectors, external shunts, or clamp meters for current if needed.
● Compliance and Warranty: As a final selection tip, ensure the product comes with necessary compliance certificates (CE, UL, etc.) and check the warranty and support terms. These machines are an investment, so a warranty of 1-2 years (or more) is common. Check if the manufacturer offers calibration services or needs periodic calibration. Also consider future expansion: can the system be upgraded or expanded with additional modules? Choosing a model from a company that offers a whole ecosystem (chargers, analyzers, etc.) might benefit you if you plan to broaden your battery maintenance toolkit – for instance, some companies offer Battery Capacity Testers, Battery Internal Resistance Testers, Battery Balancers, etc., which can complement the discharge tester for a full maintenance regime. Having compatible equipment from one source can make integration and training easier.
By following these best practices and considerations, you can ensure that you not only select the right battery discharger machine for your operations but also use it effectively and safely. Regular, well-conducted battery capacity tests with the appropriate equipment will pay dividends in improved reliability of your power systems – whether it’s keeping the lights on in a data center or ensuring an electric vehicle fleet runs at peak performance.
Conclusion
A battery discharger machine is a reliable workhorse for anyone responsible for critical batteries. It provides the means to validate battery capacity and performance under real load conditions, which is invaluable for preventing unplanned power failures and optimizing battery maintenance. We’ve seen how these devices work and their key roles in capacity testing and load simulation, spanning applications from EV batteries to UPS backups and renewable energy storage. By carefully considering technical factors like voltage range, discharge current, modes (CC, CP, etc.), data logging capabilities, and safety features, you can choose a discharger that meets your specific needs. Additionally, being mindful of regional requirements (input power differences and compliance standards) ensures smooth integration of the equipment into your operations.
In practice, implementing regular battery discharge tests using a quality machine leads to early detection of battery degradation, more accurate maintenance planning, and peace of mind that backup systems will hold up when called upon. Adopting best practices in using these testers – from preparing the batteries, monitoring the test, to analyzing the results – maximizes safety and the usefulness of the data obtained. For power system engineers and facility managers, a battery discharger is more than a piece of test gear; it’s a strategic tool that underpins the reliability of the entire power infrastructure.
In summary, battery discharger machines offer a reliable solution for battery capacity and load testing, combining electrical engineering rigor with practical safety and data features. By investing in the right equipment and procedures now, organizations can save costs and avert disasters in the long run, keeping their critical power systems running smoothly. Whether you’re maintaining a telecom UPS plant or developing the next generation of EV batteries, these testers are your ally in ensuring energy storage performs up to expectations when it matters most.
