Introduction
As high-capacity battery systems continue to expand across electric vehicles, energy storage systems, telecom infrastructure, and industrial backup power installations, maintaining uniform cell voltage has become a fundamental requirement for system reliability. In multi-cell battery packs, even slight voltage deviation between individual cells can gradually accumulate, leading to capacity reduction, shortened cycle life, and increased safety risks.
A Power Battery Balancer is designed to correct these imbalances by maintaining voltage consistency across all cells within a battery pack. Through precision monitoring and controlled balancing processes, it protects weaker cells, eliminates short-board effects, and restores overall pack performance.
Why Cell Imbalance Reduces Battery Lifespan
When lithium batteries are connected in series, each cell ideally operates at identical voltage and state of charge. However, in real-world applications, small differences arise due to:
- Manufacturing tolerances
- Internal resistance variation
- Temperature differences
- Uneven aging
- Inconsistent charge–discharge stress
Over time, these minor deviations expand. A weaker cell reaches full charge earlier or depletes faster during discharge. This creates a “short-board effect,” where the entire pack performance is limited by the weakest cell. As imbalance increases, usable capacity declines and cycle life shortens.
Without proper balancing intervention, the battery pack cannot deliver its designed energy capacity.
What Is a Power Battery Balancer
A Power Battery Balancer is an advanced maintenance and restoration system engineered to eliminate voltage inconsistency in high-capacity EV and industrial battery packs. Unlike conventional passive balancing—which wastes energy as heat—this professional-grade system utilizes a parallel modular architecture designed for high-precision cell recovery.
In practical lithium maintenance applications, such systems are often categorized as a Battery Equalizer because their primary objective is to maintain consistent energy distribution within a battery string.
One representative example of this category is the CE-CF series equalizing maintenance system, which was specifically developed to address cycle life reduction caused by voltage inconsistency after lithium cells are connected in series.
High-Precision Voltage Regulation Technology
In high-capacity lithium systems, balancing accuracy directly determines long-term pack performance. The CE-CF series adopts high-precision AD chip architecture capable of controlling voltage accuracy within ±1 mV. This level of precision ensures that each cell is monitored and adjusted with minimal deviation.
The system applies a “series compensation” method, meaning it precisely supplements energy to lagging cells rather than reducing the energy of stronger cells. By ensuring that each cell reaches full charge alignment, the balancer restores pack-level consistency and eliminates the short-board limitation effect.
As a result, the entire battery pack can recover performance close to its original factory condition.
Modular Design and Controlled Charge–Discharge Mechanism
A defining feature of an advanced power battery balancer is modular architecture. In this configuration, each charge–discharge module corresponds to one individual cell, enabling independent regulation and accurate balancing.
The system integrates constant current and constant voltage control technology. During operation, the transition from constant current to constant voltage occurs automatically, ensuring high efficiency and preventing overcharge or overdischarge conditions. Once the balancing process is completed and the system enters a resting state, voltage levels remain stable without rebound or abnormal drop.
In addition to automatic balancing, the device supports three operating modes:
- Charging maintenance
- Discharging maintenance
- Equalizing maintenance
Parameters are saved automatically, and one-touch startup simplifies operation. In manual mode, each channel allows independent voltage and current configuration. Parallel operation of multiple modules enables higher balancing current, significantly improving maintenance efficiency.
Accurate Monitoring and Data Management
A professional power battery balancer must not only regulate voltage but also provide precise measurement. The system employs four-wire detection for both voltage and current measurement on each channel, ensuring real-time accuracy.
It automatically calculates charge and discharge capacity, supports data storage, and allows export of test records. This enables engineers to track balancing effectiveness and evaluate long-term battery health trends.
Multiple protection mechanisms are integrated, including safeguards against:
- Incorrect battery connection
- Reverse polarity
- Overvoltage and undervoltage
- Communication loss
- Overcurrent
- Overtemperature
These protections ensure safe and reliable operation in demanding industrial environments.
Applications of Power Battery Balancers
Power battery balancers are essential in high-demand lithium battery systems such as:

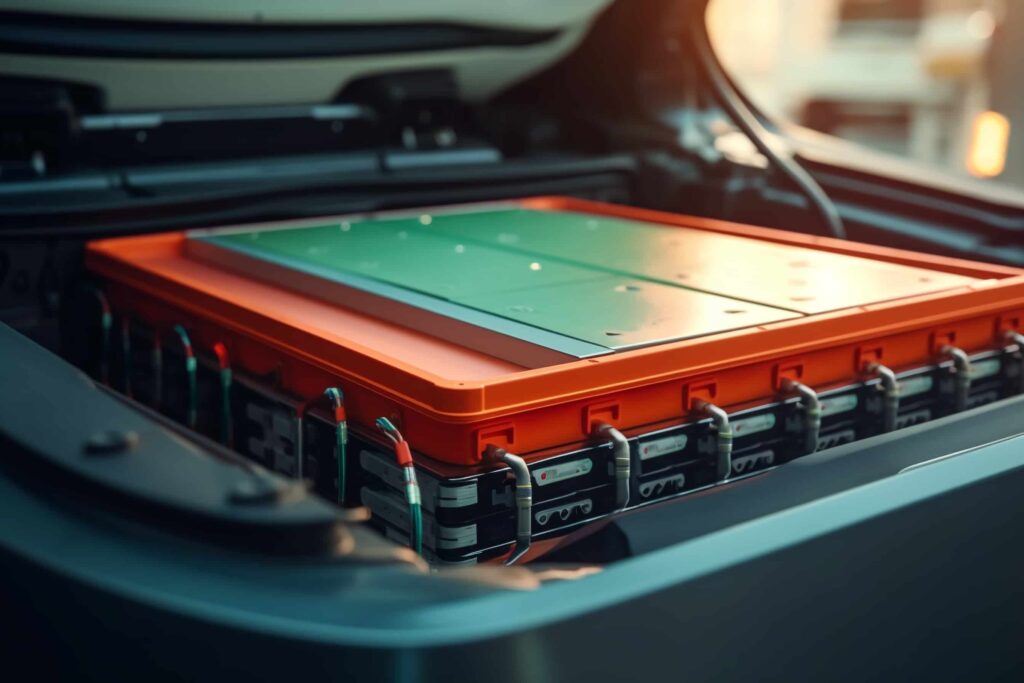

- Electric vehicle battery packs
- Energy storage systems (ESS)
- Telecom backup batteries
- Industrial DC systems
- High-capacity battery banks
In these environments, voltage imbalance directly impacts safety, runtime, and cycle life. Precision balancing is therefore a critical component of preventive maintenance.
Benefits of Implementing a Power Battery Balancer
When properly integrated into maintenance procedures, a power battery balancer delivers several measurable advantages:
- Restored pack-level capacity
- Extended cycle life
- Improved voltage consistency
- Reduced thermal stress
- Enhanced operational safety
- Higher overall energy utilization
By eliminating voltage deviation between cells, the system ensures that the battery pack operates as a unified and balanced energy system rather than a collection of uneven components.
Conclusion
A Power Battery Balancer plays a crucial role in maintaining performance and longevity in high-capacity lithium battery systems. Through high-precision voltage regulation, modular charge–discharge control, and automated balancing modes, it corrects cell-level inconsistencies that would otherwise limit pack performance.
In modern energy systems where reliability and efficiency are paramount, implementing a precision battery equalization strategy is not optional—it is essential for achieving stable, long-term battery operation.
